ID
1312712
$ 144.91
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 48.3mm pipes (range 47.5 - 52.5mm) offers a full closure tensile connection with an NBR seal, made from stainless steel 1.4571, providing easy installation and compatibility with multiple media, with product code 85.34.108.
- Description
- Ask a Question
-

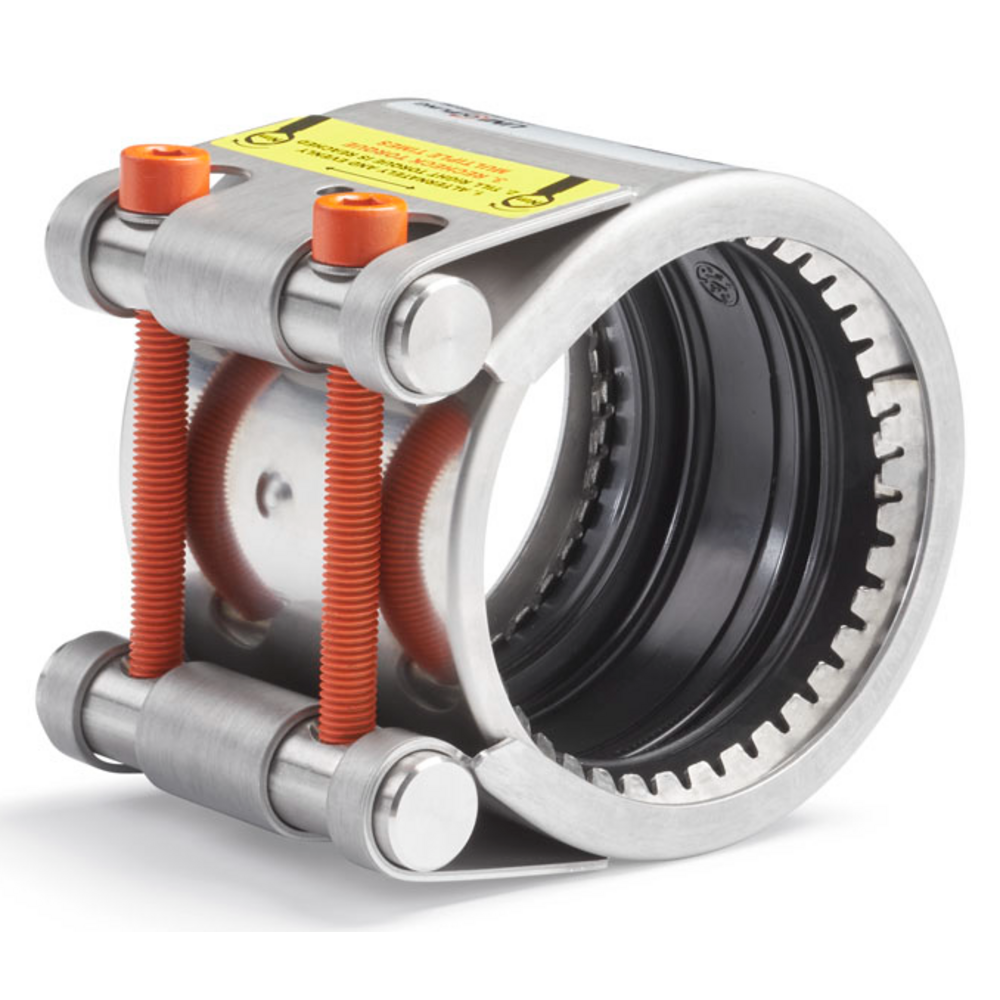

Hegawa Uni-Grip S-Coupling PN16 48.3mm Range 47.5 - 52.5mm NBR
This UNI-Grip S-coupling from stainless steel 1.4571 offers a full closure tensile connection of metal pipes with an NBR seal and PN16 pressure classification.
- Components such as housing, anchors, and optional support ring are stainless steel W5 (1.4571)
- Bolts are A4-80 / 316 Ti with PTFE coating
- Operating temperatures: EPDM -30°C to 125°C; NBR -20°C to 80°C
- Optional Viton (FKM) seal available on request for DN nominal ≥ 185 mm
- Key benefits: quick installation without welding or pipe preparation, space-saving design, compensates for pipe tolerance and angular distortion
- Applications cover ship-building, offshore, mechanical engineering, petrochemical industries, and sewerage works
- Compatible with water, gas, oil, petrol, and other hydrocarbons
- Product code: 85.34.108
- Bolt thickness: M8
- Length: 60 mm
- Seal material: NBR
- For pipe diameters from 47,5 to 52,5 mm
- Working pressure: 16 bar
-
