The Hegawa Uni-Grip S-Coupling PN16 for 26.9mm pipes (range 25.0 - 29.0mm) uses stainless steel 1.4571 and an EPDM seal to provide a tensile metal-to-metal connection with full closure, allowing quick installation without welding and fitting compact spaces, suitable for drinking water, wastewater, and compressed air, product code 85.34.202.
- Description
- Ask a Question
-

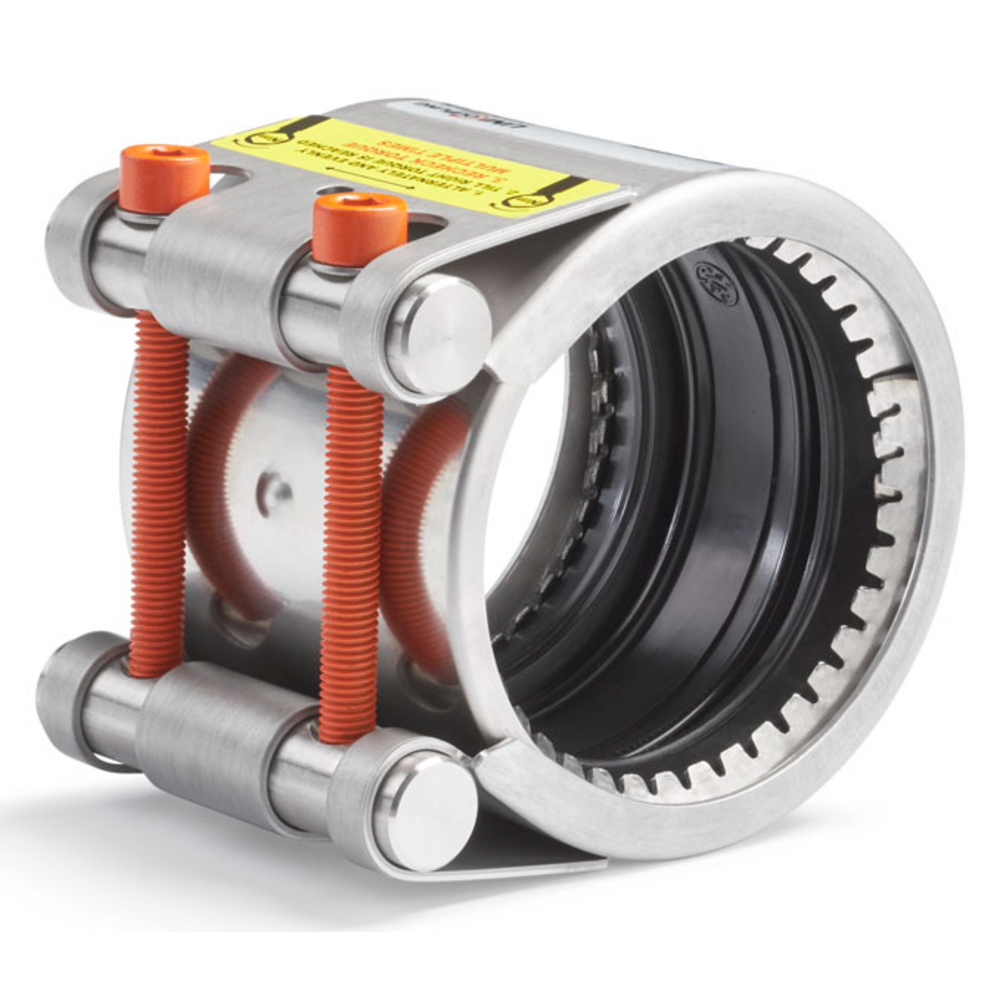

Hegawa Uni-Grip S-Coupling PN16 26.9mm Range 25.0 - 29.0mm EPDM
This stainless steel 1.4571 UNI-Grip S-coupling features a tensile metal-to-metal connection with an EPDM seal and PN16 pressure rating, designed for full closure and reliable performance.
- Housing, anchors, and optional support ring constructed from stainless steel W5 (1.4571)
- Bolt material: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature range: -30°C to 125°C
- Optional Viton (FKM) seal available for DN nominal ≥ 185 mm upon request
- Advantages include quick installation without welding or pipe end treatment
- Compact design fits difficult-to-access locations
- Compensates for pipe tolerance and angular distortion
- Applications: ship-building, offshore, mechanical engineering, petrochemical industry, sewerage works
- Suitable media: drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.202
- Bolt thickness: M6
- Length: 45 mm
- Seal material: EPDM
- Pipe diameter range: 25 - 29 mm
- Working pressure: 16 bar
-
