ID
1312710
$ 122.06
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 33.7mm pipes (range 33.0 - 36.0mm) features stainless steel 1.4571 construction and an NBR seal, providing a secure, full closure connection that compensates for pipe tolerance and angular distortion, ideal for ship-building and petrochemical applications, product code 85.34.104.
- Description
- Ask a Question
-

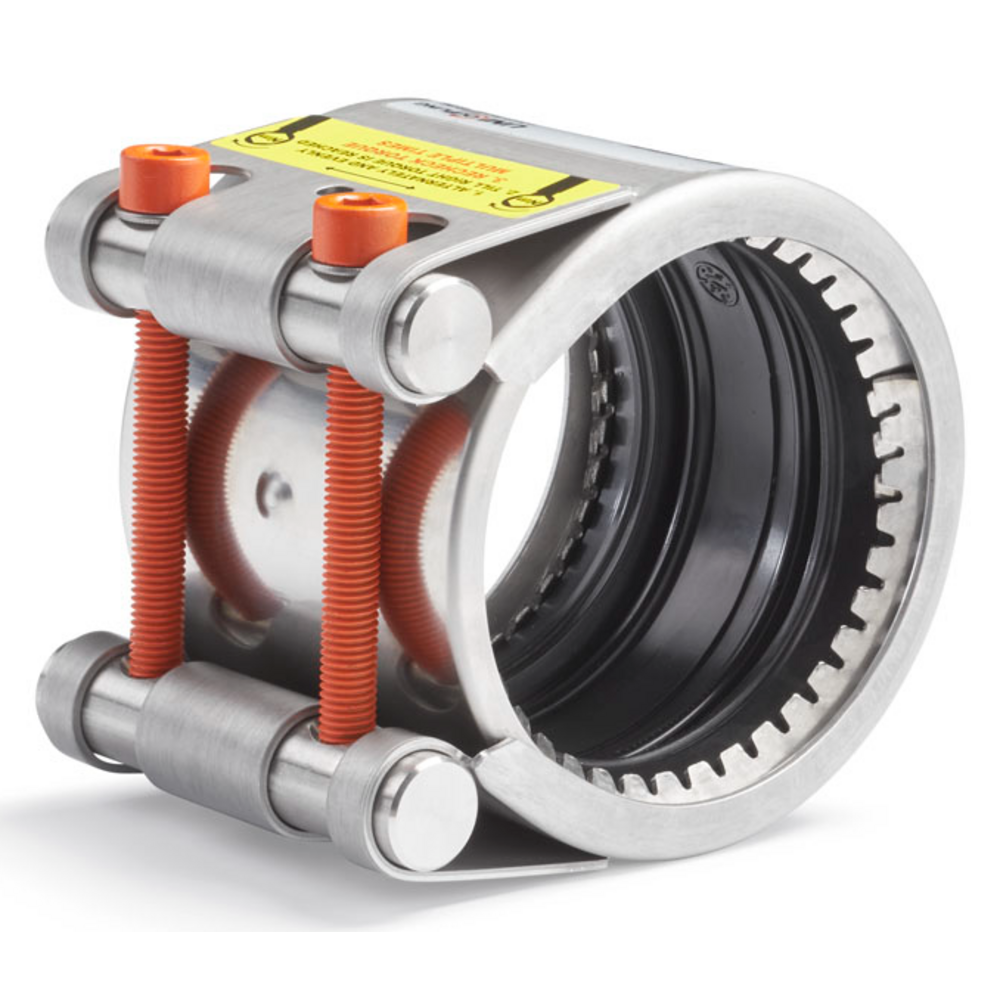

Hegawa Uni-Grip S-Coupling PN16 33.7mm Range 33.0 - 36.0mm NBR
This stainless steel 1.4571 UNI-Grip S-coupling provides a tensile metal-to-metal connection with an NBR seal and a PN16 rating, designed for full closure and reliable performance.
- Housing, anchors, and optional support ring made of stainless steel W5 (1.4571)
- Bolt type: A4-80 / 316 Ti with PTFE coating
- Temperature range: EPDM -30°C to 125°C; NBR -20°C to 80°C
- Optional Viton (FKM) seal available for DN nominal ≥ 185 mm upon request
- Benefits include quick installation without welding or pipe preparation, space efficiency, and compensation for pipe tolerance and angular distortion
- Ideal for ship-building, offshore, mechanical engineering, petrochemical sectors, and sewerage works
- Compatible with water, gas, oil, petrol, and various hydrocarbons
- Product code: 85.34.104
- Bolt thickness: M6
- Length: 45 mm
- Seal material: NBR
- Fits pipe diameters from 33 to 36 mm
- Working pressure: 16 bar
-
