The Hegawa Uni-Grip S-Coupling PN16 for 168.3mm pipes (range 164.0 - 172.0mm) is constructed from stainless steel 1.4571 with an NBR seal, designed for secure, full closure pipe joining without welding or pipe end treatment, suitable for demanding industrial environments, product code 85.34.123.
- Description
- Ask a Question
-

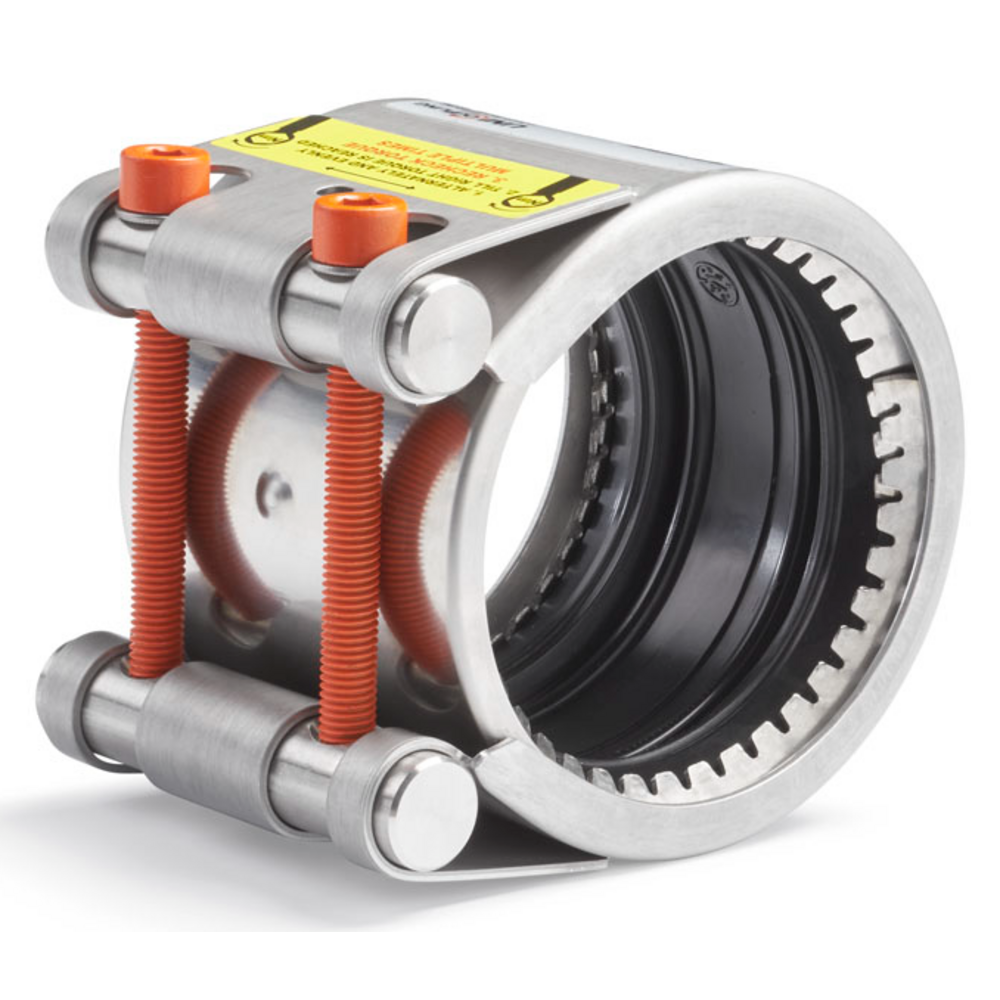

Hegawa Uni-Grip S-Coupling PN16 168.3mm Range 164.0 - 172.0mm NBR
The UNI-Grip S-coupling crafted from stainless steel 1.4571 offers a tensile metal-to-metal connection with an NBR seal and PN16 pressure rating, featuring a full closure design for secure pipe joining.
- Housing, anchors, and optional support ring made of stainless steel W5 (1.4571)
- Bolt material: A4-80 / 316 Ti with PTFE coating
- Temperature ranges: EPDM -30°C to 125°C; NBR -20°C to 80°C
- Optional Viton (FKM) seal available on request for DN nominal ≥ 185 mm
- Installation benefits: no welding, no pre-alignment, no pipe end treatment required
- Space-saving design suitable for hard-to-reach locations
- Compensates for pipe tolerance and angular distortion
- Applications include ship-building, offshore, mechanical engineering, petrochemical industry, and sewerage works
- Suitable for media such as water, gas, oil, petrol, and other hydrocarbons
- Product code: 85.34.123
- Bolt thickness: M12
- Length: 110 mm
- Seal material: NBR
- Pipe diameter range: 164 - 172 mm
- Working pressure: 16 bar
-
