ID
1312714
$ 1,768.02
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 219.1mm pipes (range 210.0 - 223.0mm) is made of stainless steel 1.4571 with an NBR seal, offering a full closure tensile connection that installs quickly without welding, fits tight spaces, and compensates for pipe tolerance and angular distortion, suitable for various industrial applications, product code 85.34.126.
- Description
- Ask a Question
-

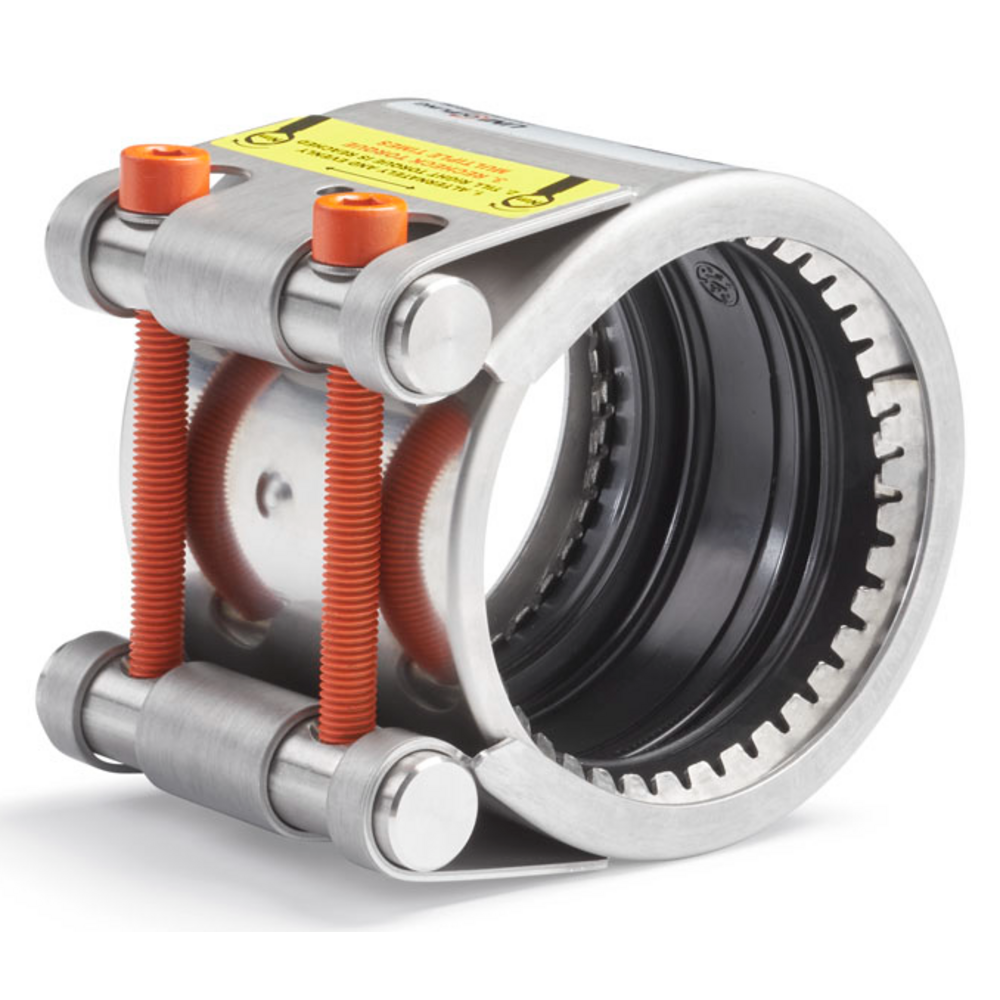

Hegawa Uni-Grip S-Coupling PN16 219.1mm Range 210.0 - 223.0mm NBR
This UNI-Grip S-coupling is made of stainless steel 1.4571, providing a tensile connection between metal pipes with an NBR seal and PN16 rating, including a full closure version for secure sealing.
- Housing, anchors, and optional support ring of stainless steel W5 (1.4571)
- Bolt type: A4-80 / 316 Ti with PTFE coating
- Operating temperatures: EPDM -30°C to 125°C; NBR -20°C to 80°C
- Viton (FKM) seal option available on request for DN nominal ≥ 185 mm
- Advantages: quick installation with no welding or pipe preparation needed
- Space-efficient for installation in confined areas
- Compensates for pipe tolerance and angular distortion
- Used in ship-building, offshore, mechanical engineering, petrochemical, and sewerage industries
- Compatible with water, gas, oil, petrol, and other hydrocarbons
- Product code: 85.34.126
- Bolt thickness: M16
- Length: 140 mm
- Seal material: NBR
- Pipe diameter range: 210 - 223 mm
- Working pressure: 16 bar
-
