ID
1312717
$ 122.06
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 33.7mm pipes (range 33.0 - 36.0mm) is constructed from stainless steel 1.4571 with an EPDM seal, offering a reliable full closure tensile connection that installs easily without welding and compensates for pipe tolerance, ideal for various industrial uses, product code 85.34.204.
- Description
- Ask a Question
-

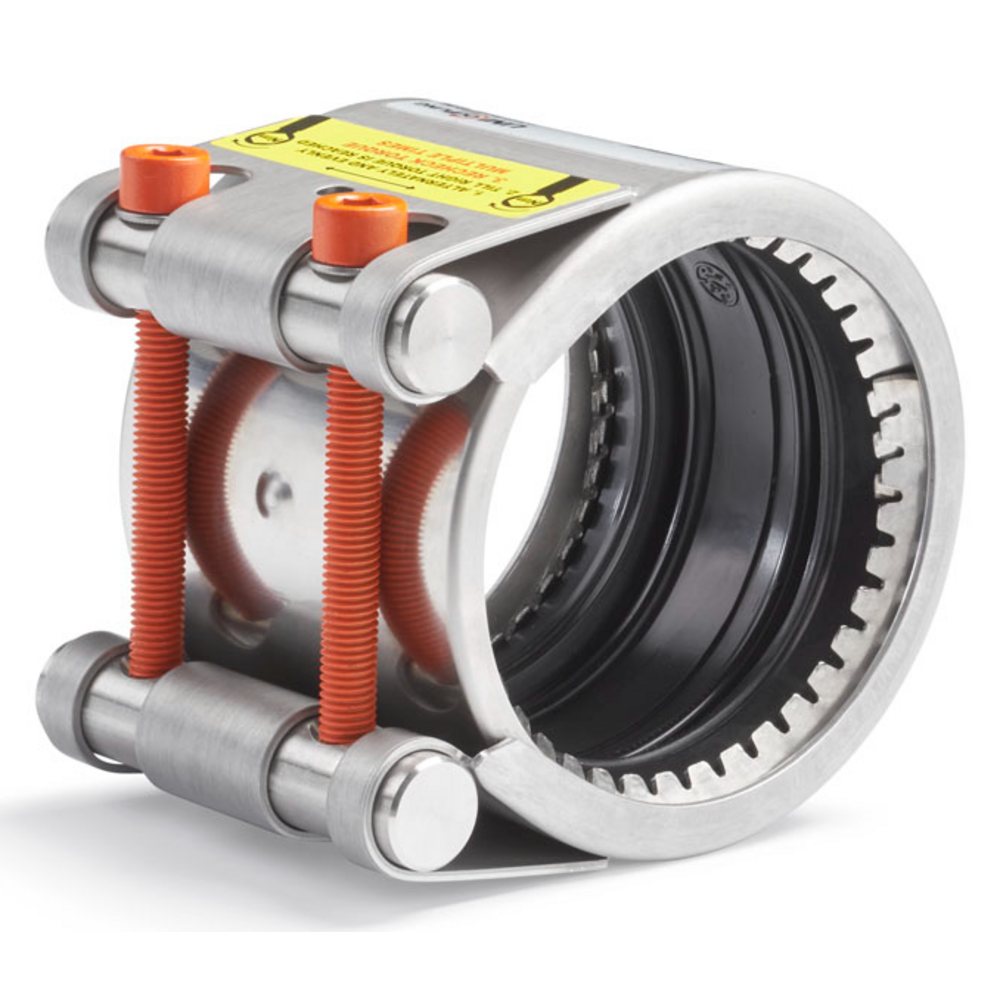

Hegawa Uni-Grip S-Coupling PN16 33.7mm Range 33.0 - 36.0mm EPDM
The UNI-Grip S-coupling made from stainless steel 1.4571 provides a tensile connection of metal pipes using an EPDM seal and a PN16 pressure rating, with a full closure design for reliable sealing.
- Housing, anchors, and optional support ring are stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature: -30°C to 125°C
- Optional Viton (FKM) seal available on request for DN nominal ≥ 185 mm
- Installation advantages: no welding, no pre-alignment, no pipe end treatment needed
- Space-saving, suitable for installation in hard-to-reach places
- Compensates for pipe tolerance and angular distortion
- Applications include ship-building, offshore, mechanical engineering, petrochemical industry, and sewerage works
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.204
- Bolt thickness: M6
- Length: 45 mm
- Seal material: EPDM
- Pipe diameter range: 33 - 36 mm
- Working pressure: 16 bar
-
