ID
1312718
$ 144.91
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 44.5mm pipes (range 43.0 - 47.5mm) provides a stainless steel 1.4571 tensile connection with an EPDM seal and full closure design, enabling fast installation without welding and fitting tight spaces, suitable for drinking water, wastewater, and industrial applications, product code 85.34.207.
- Description
- Ask a Question
-

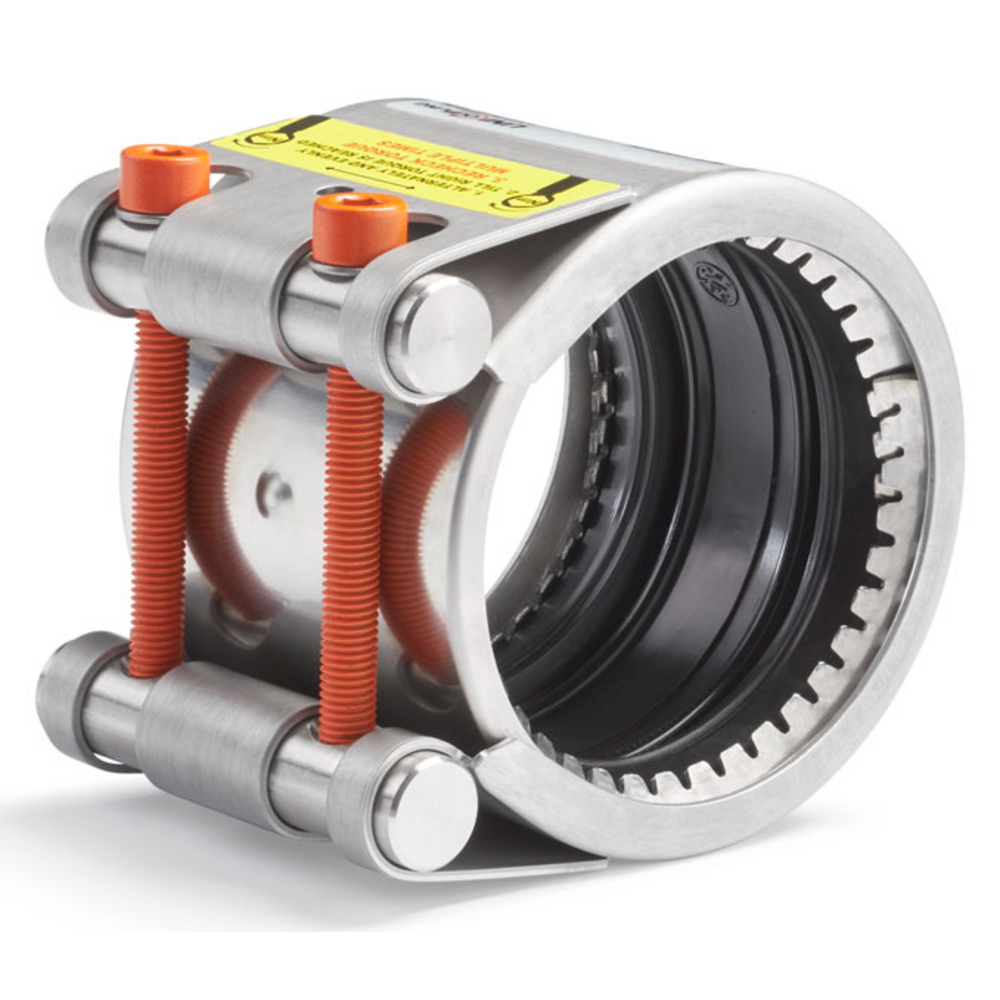

Hegawa Uni-Grip S-Coupling PN16 44.5mm Range 43.0 - 47.5mm EPDM
This stainless steel 1.4571 UNI-Grip S-coupling offers a tensile metal connection using an EPDM seal and PN16 rating, ensuring full closure and secure pipe joining.
- Housing, anchors, and optional support ring made of stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature: -30°C to 125°C
- Viton (FKM) seal option available for DN nominal ≥ 185 mm on request
- Advantages: no welding or pipe end treatment needed, fast installation
- Compact design fits tight and hard-to-reach spaces
- Compensation for pipe tolerance and angular distortion
- Applications in ship-building, offshore, mechanical engineering, petrochemical, and sewerage fields
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.207
- Bolt thickness: M8
- Length: 60 mm
- Seal material: EPDM
- Pipe diameter range: 43 - 47,5 mm
- Working pressure: 16 bar
-
