ID
1312711
$ 144.91
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 44.5mm pipes (range 43.0 - 47.5mm) is a stainless steel 1.4571 coupling with an NBR seal, designed for quick installation without welding, fitting tight spaces, and suitable for various industrial uses, identified by product code 85.34.107.
- Description
- Ask a Question
-

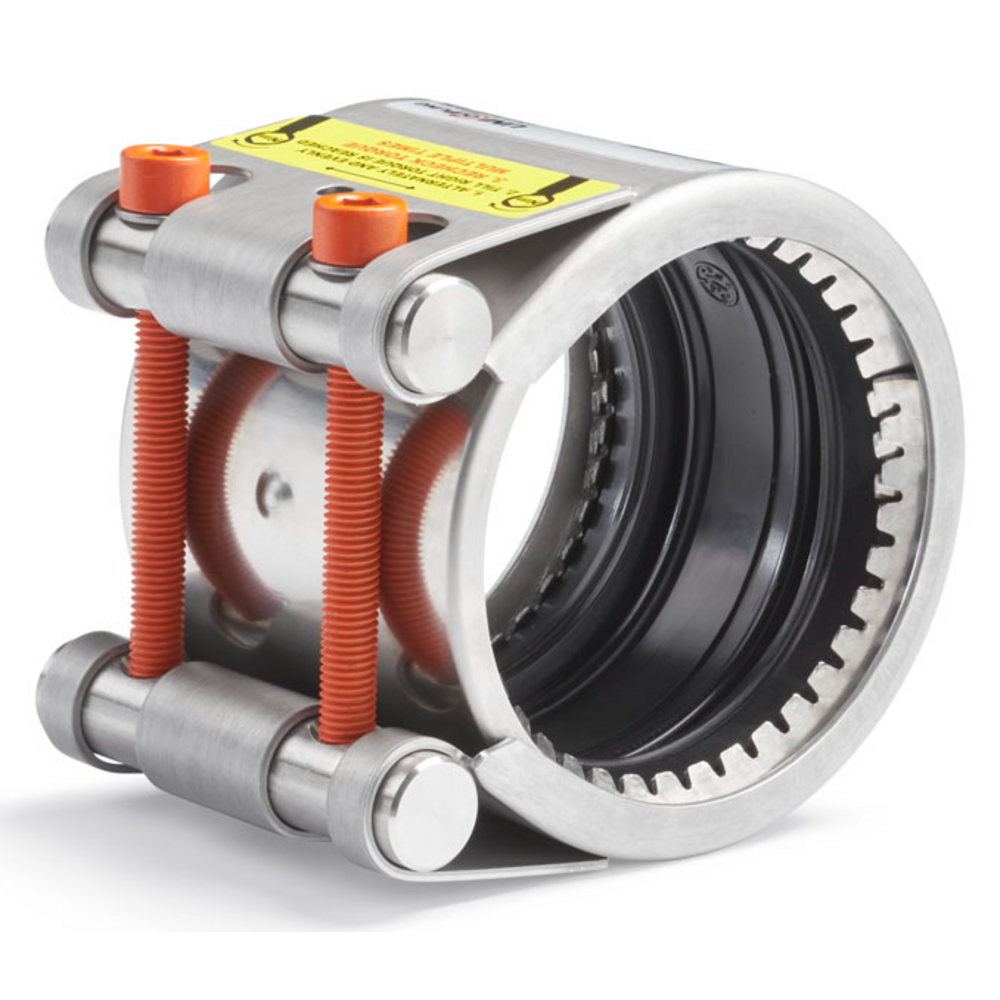

Hegawa Uni-Grip S-Coupling PN16 44.5mm Range 43.0 - 47.5mm NBR
The stainless steel 1.4571 UNI-Grip S-coupling ensures tensile metal connections with an NBR seal, featuring full closure and a PN16 pressure rating for effective pipe joining.
- Housing, anchors, and optional support ring made from stainless steel W5 (1.4571)
- Bolt material: A4-80 / 316 Ti coated with PTFE
- Temperature specifications: EPDM -30°C to 125°C; NBR -20°C to 80°C
- Viton (FKM) seal option available for DN nominal ≥ 185 mm on request
- Advantages: saves installation time, requires no welding or pipe end treatment, fits confined spaces, compensates for pipe tolerance and angular distortion
- Applications include ship-building, offshore, mechanical engineering, petrochemical industry, and sewerage works
- Suitable for mediums like water, gas, oil, petrol, and other hydrocarbons
- Product code: 85.34.107
- Bolt thickness: M8
- Length: 60 mm
- Seal material: NBR
- Designed for pipe diameters 43 - 47,5 mm
- Working pressure: 16 bar
-
