ID
1312719
$ 144.91
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 48.3mm pipes (range 47.5 - 52.5mm) features stainless steel 1.4571 construction with an EPDM seal, delivering a full closure tensile connection that installs quickly without welding and compensates for pipe tolerance, used in ship-building and petrochemical sectors, product code 85.34.208.
- Description
- Ask a Question
-

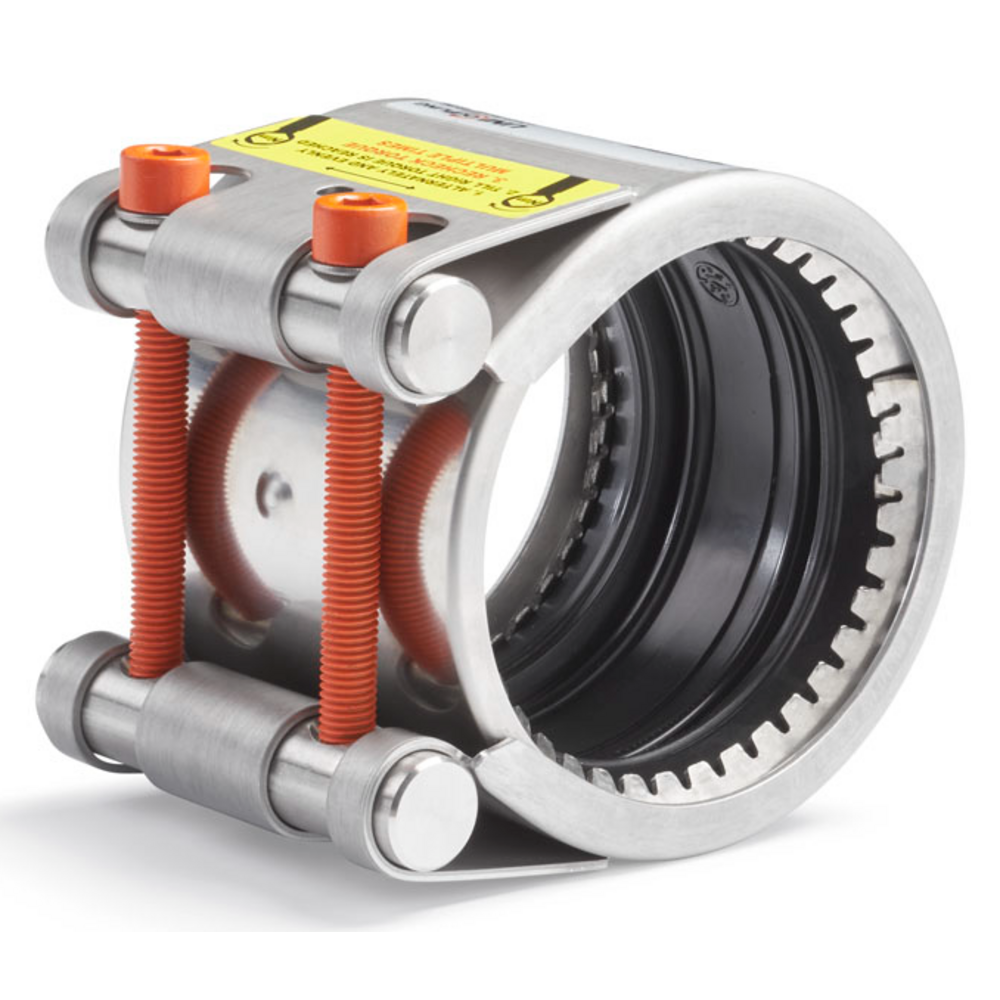

Hegawa Uni-Grip S-Coupling PN16 48.3mm Range 47.5 - 52.5mm EPDM
The UNI-Grip S-coupling in stainless steel 1.4571 delivers a tensile metal-to-metal connection with an EPDM seal and PN16 pressure class, featuring a full closure for dependable performance.
- Housing, anchors, and support ring (optional) made of stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti coated with PTFE
- EPDM working temperature: -30°C to 125°C
- Seal type Viton (FKM) available on request for DN nominal ≥ 185 mm
- Time-saving installation without welding or pipe preparation
- Space-saving design suitable for difficult-to-access areas
- Compensates for pipe tolerance and angular distortion
- Applications include ship-building, offshore, mechanical engineering, petrochemical, and sewerage works
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.208
- Bolt thickness: M8
- Length: 60 mm
- Seal material: EPDM
- Pipe diameter range: 47,5 - 52,5 mm
- Working pressure: 16 bar
-
