ID
1312715
$ 1,957.67
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 273.0mm pipes (range 263.0 - 276.0mm) features stainless steel 1.4571 construction with an NBR seal and full closure design, enabling robust pipe joining with quick installation, no welding, and space-saving benefits, used in ship-building, offshore, and petrochemical industries, product code 85.34.130.
- Description
- Ask a Question
-

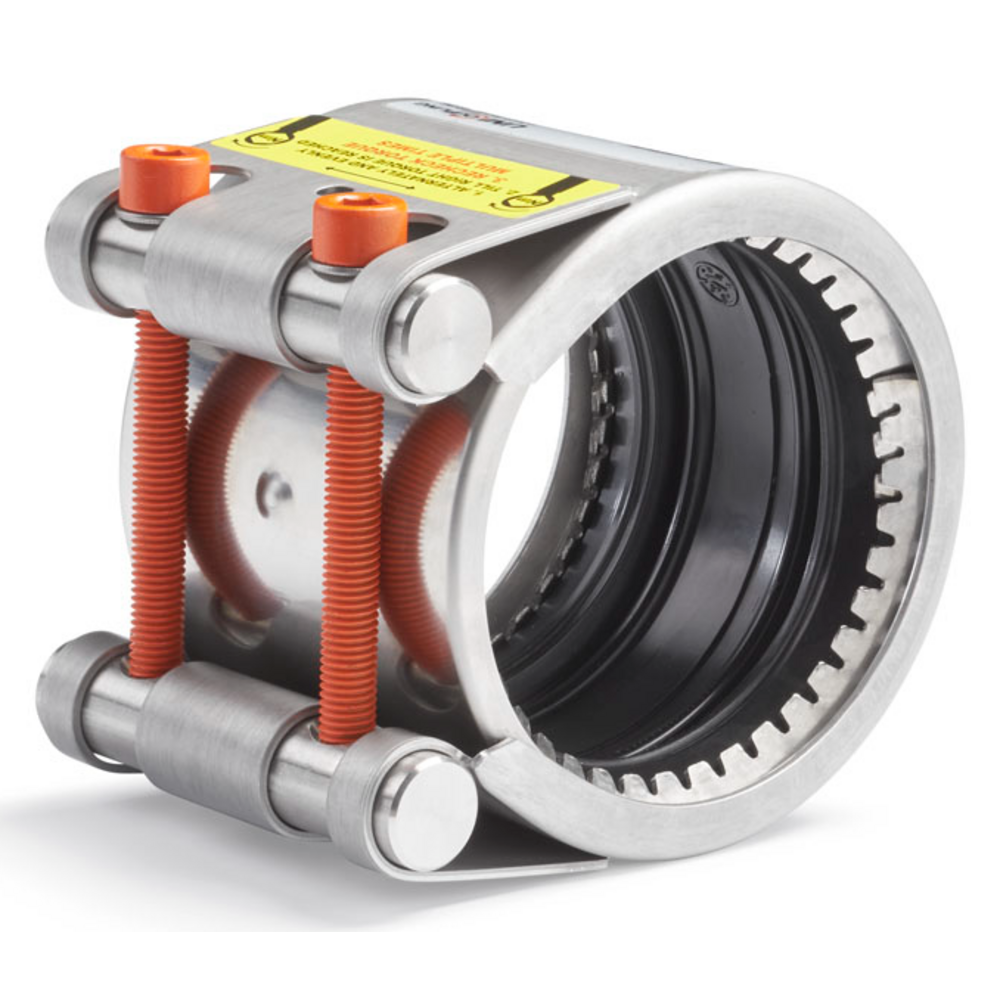

Hegawa Uni-Grip S-Coupling PN16 273.0mm Range 263.0 - 276.0mm NBR
The stainless steel 1.4571 UNI-Grip S-coupling creates a tensile connection between metal pipes with an NBR seal and PN16 pressure rating, utilizing a full closure design for robust joining.
- Housing, anchors, and optional support ring made from stainless steel W5 (1.4571)
- Bolts are A4-80 / 316 Ti with PTFE coating
- Temperature limits: EPDM -30°C to 125°C; NBR -20°C to 80°C
- Optional Viton (FKM) seal for DN nominal ≥ 185 mm available on request
- Benefits include time-saving installation, no welding or pipe end preparation, and suitability for tight spaces
- Compensates for pipe tolerance and angular distortion
- Applications in ship-building, offshore, mechanical engineering, petrochemical industry, and sewerage works
- Suitable for water, gas, oil, petrol, and other hydrocarbons
- Product code: 85.34.130
- Bolt thickness: M16
- Length: 140 mm
- Seal material: NBR
- Pipe diameter range: 263 - 276 mm
- Working pressure: 16 bar
-
