ID
1312709
$ 122.06
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 26.9mm pipes (range 25.0 - 29.0mm) is made of stainless steel 1.4571 with an NBR seal, offering a full closure tensile connection that requires no welding or pipe end treatment, suitable for various industries and media, with product code 85.34.102.
- Description
- Ask a Question
-

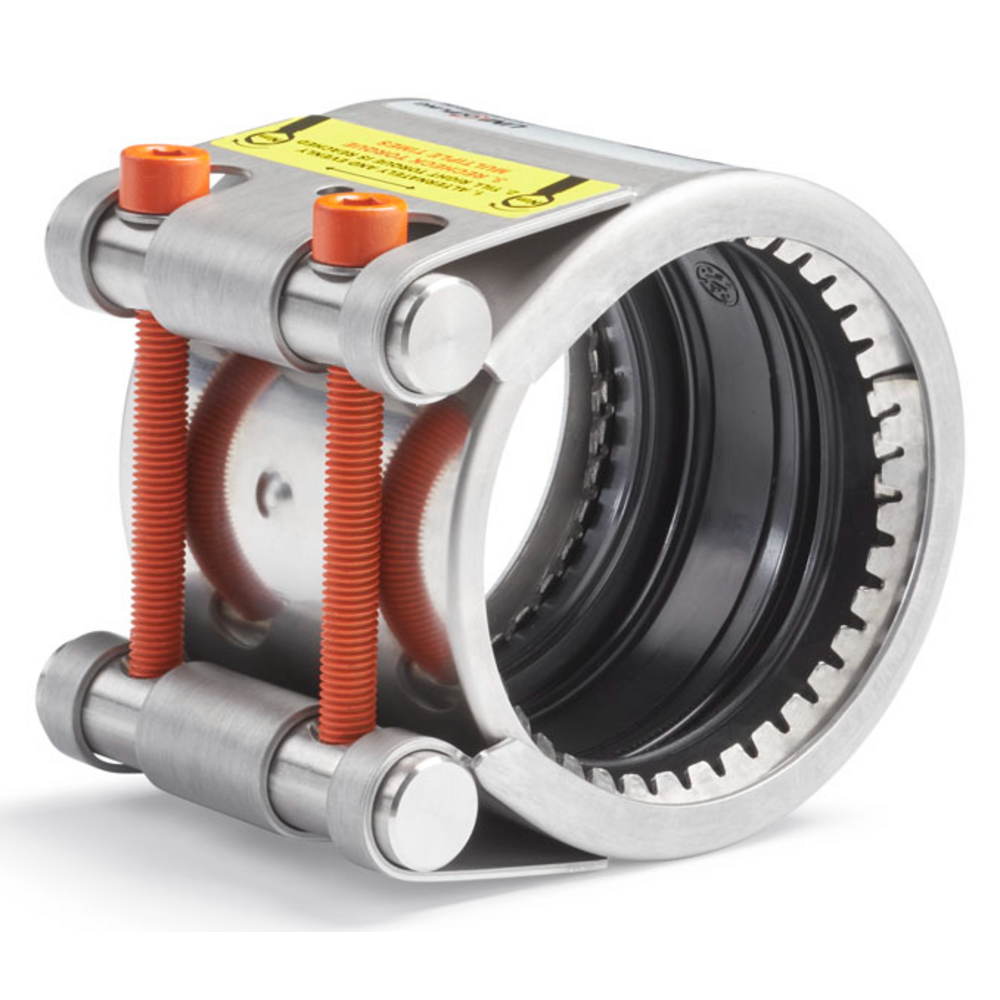

Hegawa Uni-Grip S-Coupling PN16 26.9mm Range 25.0 - 29.0mm NBR
The UNI-Grip S-coupling is made of stainless steel 1.4571, providing a tensile connection between metal pipes with an NBR seal and a PN16 rating. It features a full closure design ensuring secure pipe joining.
- Housing, anchors, and optional support ring constructed from stainless steel W5 (1.4571)
- Bolt material: A4-80 / 316 Ti with PTFE coating
- Temperature range: EPDM -30°C to 125°C; NBR -20°C to 80°C
- Optional Viton (FKM) seal available on request for DN nominal ≥ 185 mm
- Advantages: no welding or pipe end treatment needed, fits tight spaces, compensates for pipe tolerance and angular distortion
- Applications include ship-building, offshore, mechanical engineering, petrochemical industry, and sewerage works
- Suitable media: water, gas, oil, petrol, and other hydrocarbons
- Product code: 85.34.102
- Bolt thickness: M6
- Length: 45 mm
- Seal material: NBR
- Pipe diameter range: 25 - 29 mm
- Working pressure: 16 bar
-
