The Hegawa Uni-Grip S-Coupling PN16 for 168.3mm pipes (range 164.0 - 172.0mm) is constructed from stainless steel 1.4571 with an EPDM seal, providing a secure full closure tensile connection that installs easily without welding or pipe end treatment, compensates for pipe tolerance, and suits demanding industrial environments, product code 85.34.223.
- Description
- Ask a Question
-

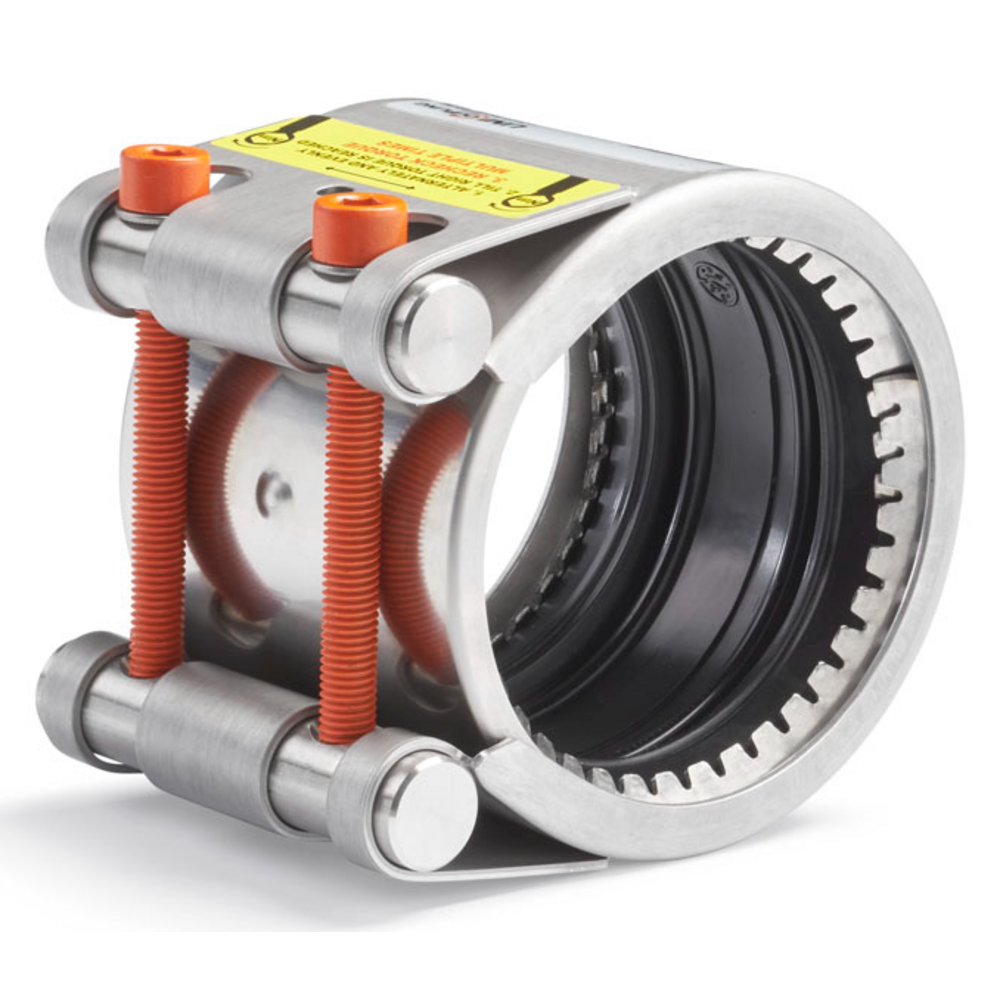

Hegawa Uni-Grip S-Coupling PN16 168.3mm Range 164.0 - 172.0mm EPDM
The UNI-Grip S-coupling constructed from stainless steel 1.4571 delivers a tensile connection of metal pipes using an EPDM seal and PN16 rating, featuring a full closure design for effective sealing.
- Housing, anchors, and optional support ring made from stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature: -30°C to 125°C
- Optional Viton (FKM) seal for DN nominal ≥ 185 mm available on request
- Installation benefits: no welding, no pre-alignment, no pipe end treatment required
- Space-saving, suitable for installation in hard-to-reach places
- Compensates for pipe tolerance and angular distortion
- Applications in ship-building, offshore, mechanical engineering, petrochemical industry, and sewerage works
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.223
- Bolt thickness: M12
- Length: 110 mm
- Seal material: EPDM
- Pipe diameter range: 164 - 172 mm
- Working pressure: 16 bar
-
