The Hegawa Uni-Grip S-Coupling PN16 for 88.9mm pipes (range 88.0 - 96.0mm) features stainless steel 1.4571 construction with an EPDM seal and full closure design, enabling dependable sealing with fast installation, no welding, and space-saving benefits, used in ship-building, offshore, and petrochemical industries, product code 85.34.214.
- Description
- Ask a Question
-

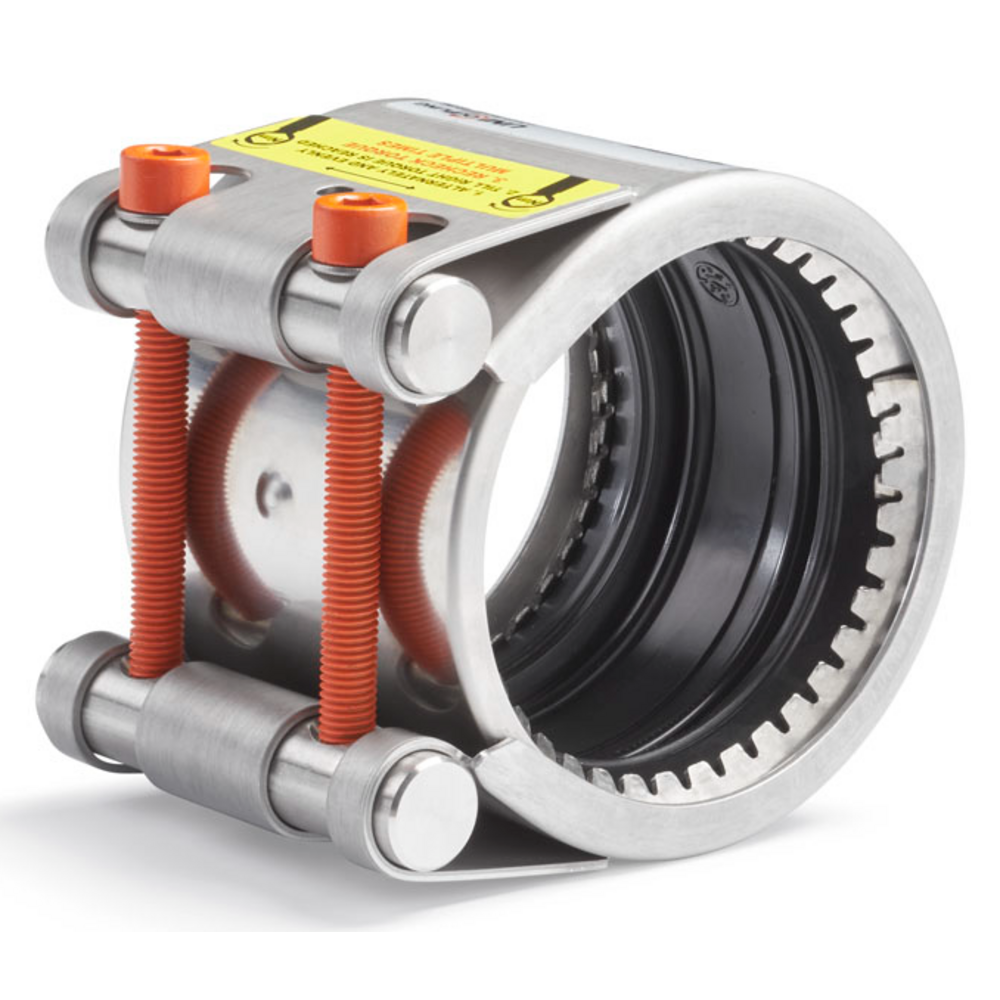

Hegawa Uni-Grip S-Coupling PN16 88.9mm Range 88.0 - 96.0mm EPDM
This stainless steel 1.4571 UNI-Grip S-coupling provides a tensile connection of metal pipes with an EPDM seal and PN16 rating, designed with a full closure version for dependable sealing.
- Housing, anchors, and optional support ring made of stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature from -30°C to 125°C
- Seal type Viton (FKM) available on request for DN nominal ≥ 185 mm
- Time-saving installation without welding, pre-alignment, or pipe end treatment
- Space-saving design for installation in confined spaces
- Compensates for pipe tolerance and angular distortion
- Applications include ship-building, offshore, mechanical engineering, petrochemical, and sewerage works
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.214
- Bolt thickness: M10
- Length: 95 mm
- Seal material: EPDM
- Pipe diameter range: 88 - 96 mm
- Working pressure: 16 bar
-
