ID
1312725
$ 1,957.67
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 273.0mm pipes (range 263.0 - 276.0mm) is made from stainless steel 1.4571 with an EPDM seal, providing a full closure tensile metal-to-metal connection that installs quickly without welding or pipe preparation, fits tight spaces, and compensates for pipe tolerance, used in ship-building and petrochemical sectors, product code 85.34.230.
- Description
- Ask a Question
-

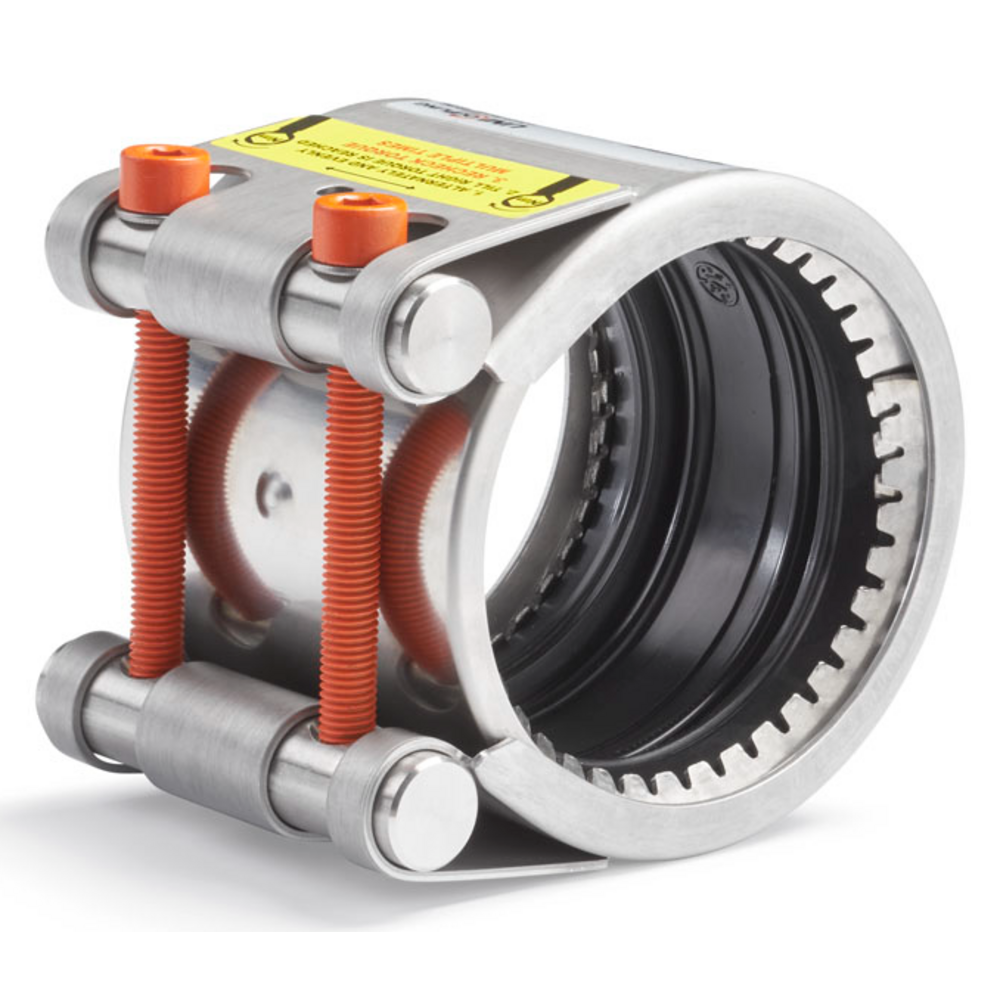

Hegawa Uni-Grip S-Coupling PN16 273.0mm Range 263.0 - 276.0mm EPDM
This UNI-Grip S-coupling is made from stainless steel 1.4571, providing a tensile metal-to-metal connection with an EPDM seal and PN16 pressure rating, designed as a full closure version for secure pipe joining.
- Housing, anchors, and optional support ring crafted from stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature range: -30°C to 125°C
- Optional Viton (FKM) seal available for DN nominal ≥ 185 mm on request
- Installation advantages: no welding, no pre-alignment, no pipe end treatment required
- Space-saving design suitable for installation in hard-to-reach areas
- Compensates for pipe tolerance and angular distortion
- Applications: ship-building, offshore, mechanical engineering, petrochemical industry, sewerage works
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.230
- Bolt thickness: M16
- Length: 140 mm
- Seal material: EPDM
- Pipe diameter range: 263 - 276 mm
- Working pressure: 16 bar
-
