ID
1312724
$ 1,769.49
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 219.1mm pipes (range 210.0 - 223.0mm) offers a stainless steel 1.4571 tensile connection with an EPDM seal and full closure design, allowing fast installation without welding, fitting confined spaces, and compensating for pipe tolerance and angular distortion, suitable for various industries, product code 85.34.226.
- Description
- Ask a Question
-

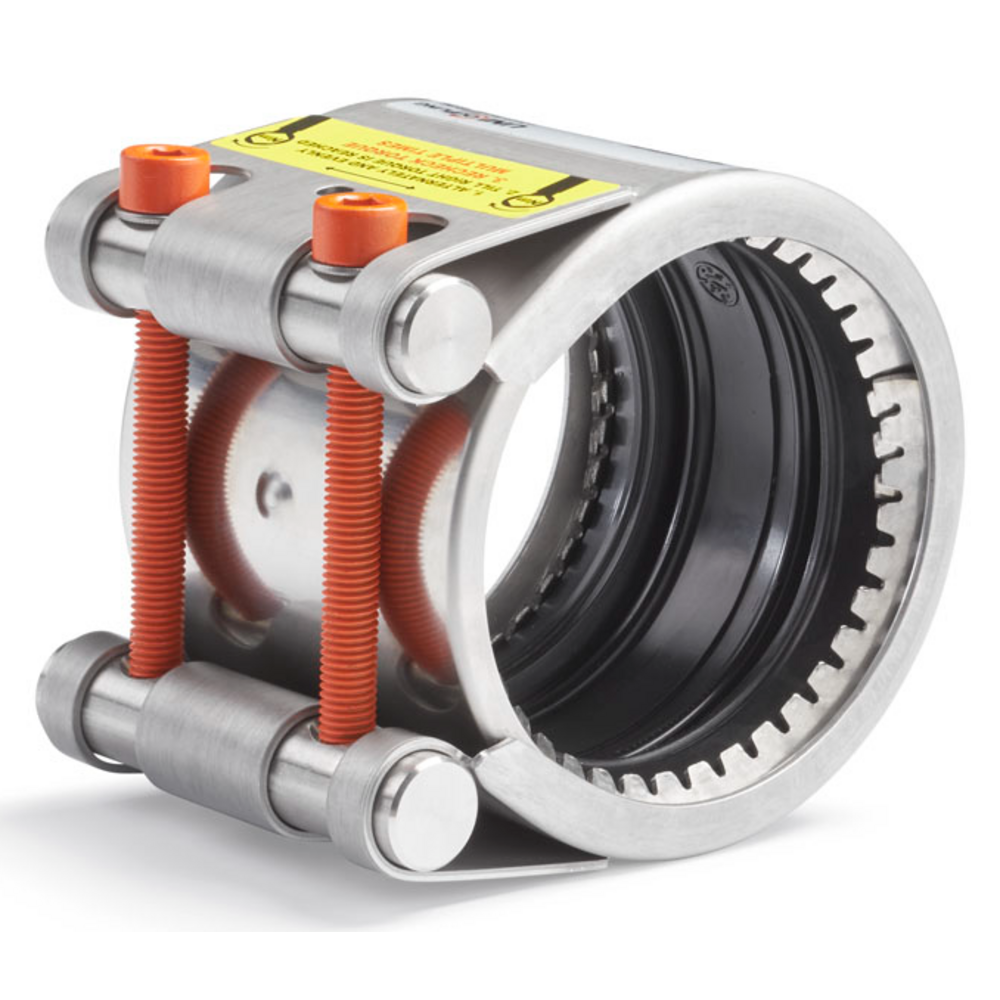

Hegawa Uni-Grip S-Coupling PN16 219.1mm Range 210.0 - 223.0mm EPDM
This UNI-Grip S-coupling in stainless steel 1.4571 provides a tensile metal-to-metal connection with an EPDM seal and PN16 rating, incorporating a full closure version for secure pipe joining.
- Housing, anchors, and optional support ring constructed from stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature range: -30°C to 125°C
- Seal type Viton (FKM) available on request for DN nominal ≥ 185 mm
- Advantages: fast installation without welding, pre-alignment, or pipe end treatment
- Space-saving design fits hard-to-reach locations
- Compensates for pipe tolerance and angular distortion
- Applications include ship-building, offshore, mechanical engineering, petrochemical, and sewerage industries
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.226
- Bolt thickness: M16
- Length: 140 mm
- Seal material: EPDM
- Pipe diameter range: 210 - 223 mm
- Working pressure: 16 bar
-
