The Hegawa Uni-Grip S-Coupling PN16 for 60.3mm pipes (range 58.0 - 64.0mm) is made from stainless steel 1.4571 with an EPDM seal, offering a secure full closure tensile connection that allows fast installation without welding and fits compact spaces, suitable for drinking water, wastewater, and compressed air applications, product code 85.34.210.
- Description
- Ask a Question
-

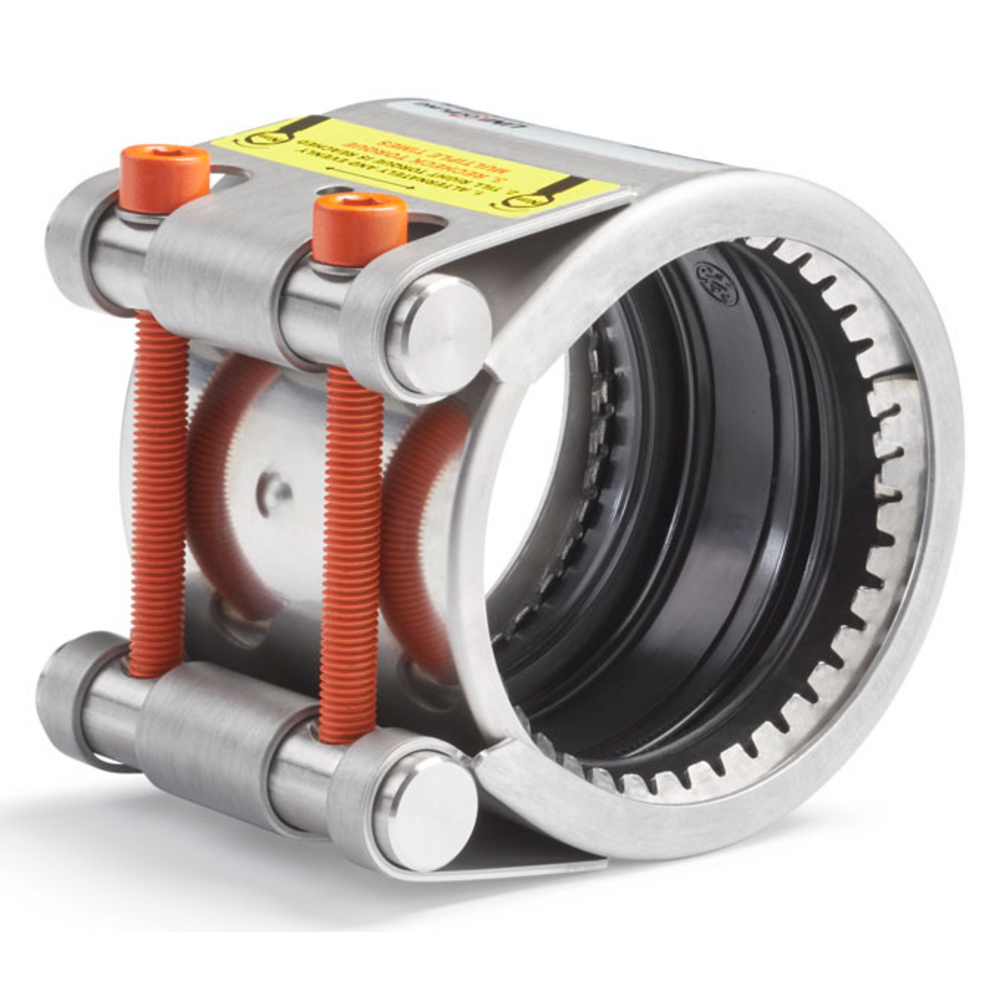

Hegawa Uni-Grip S-Coupling PN16 60.3mm Range 58.0 - 64.0mm EPDM
This UNI-Grip S-coupling is made from stainless steel 1.4571 and offers a tensile connection of metal pipes with an EPDM seal and PN16 rating, designed for full closure and secure installation.
- Housing, anchors, and optional support ring are stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature from -30°C to 125°C
- Optional Viton (FKM) seal available for DN nominal ≥ 185 mm on request
- Advantages include quick installation without welding or pipe end treatment
- Compact design fits difficult-to-access locations
- Pipe tolerance and angular distortion compensation
- Applications span ship-building, offshore, mechanical engineering, petrochemical, and sewerage works
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.210
- Bolt thickness: M8
- Length: 75 mm
- Seal material: EPDM
- Pipe diameter range: 58 - 64 mm
- Working pressure: 16 bar
-
