ID
1312721
$ 241.41
1-2 weeks delivery time
-
+
The Hegawa Uni-Grip S-Coupling PN16 for 76.1mm pipes (range 72.0 - 80.0mm) is made from stainless steel 1.4571 with an EPDM seal, offering a full closure tensile connection that installs quickly without welding or pipe end treatment, fits tight spaces, and compensates for pipe tolerance and angular distortion, suitable for various industrial applications, product code 85.34.212.
- Description
- Ask a Question
-

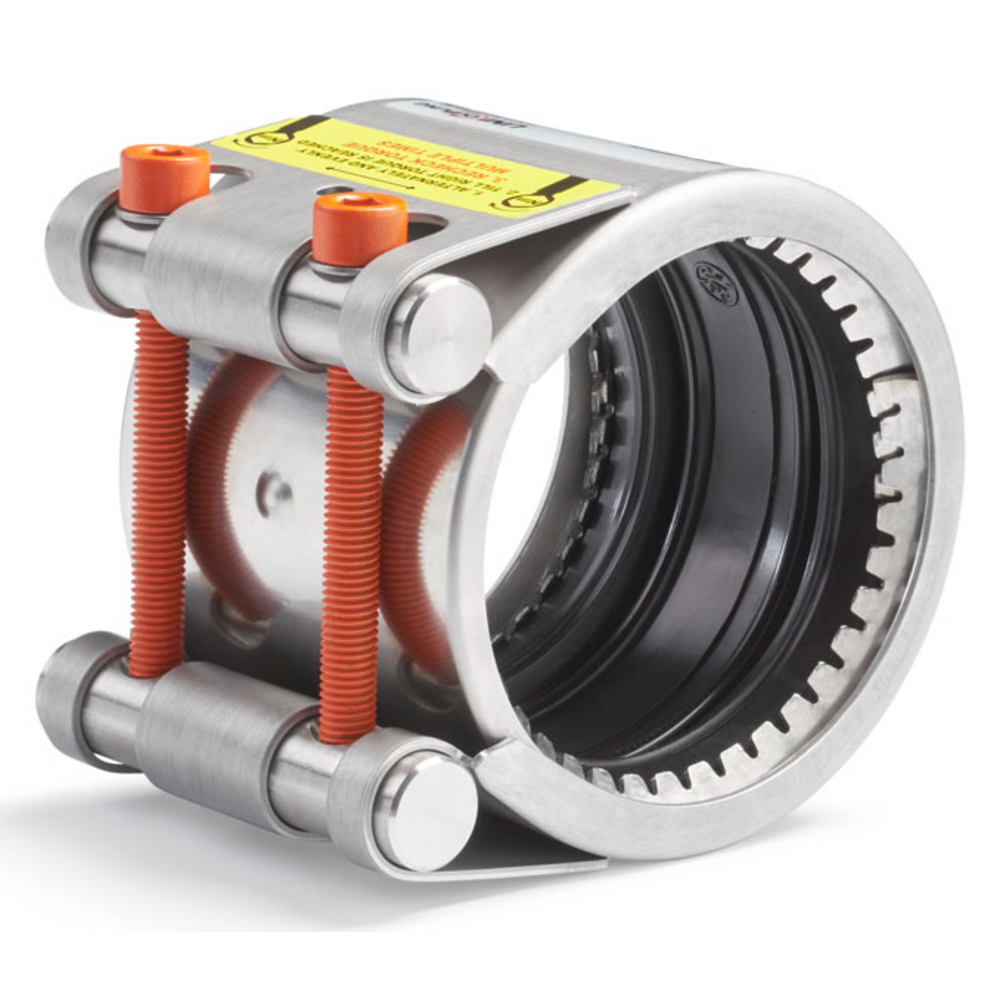

Hegawa Uni-Grip S-Coupling PN16 76.1mm Range 72.0 - 80.0mm EPDM
The UNI-Grip S-coupling made from stainless steel 1.4571 establishes a tensile metal-to-metal connection with an EPDM seal and PN16 pressure rating, featuring a full closure design for secure pipe installation.
- Housing, anchors, and optional support ring constructed from stainless steel W5 (1.4571)
- Bolts: A4-80 / 316 Ti with PTFE coating
- EPDM working temperature range: -30°C to 125°C
- Optional Viton (FKM) seal available for DN nominal ≥ 185 mm upon request
- Advantages: quick installation without welding, pre-alignment, or pipe end treatment
- Space-saving design suitable for hard-to-reach locations
- Compensates for pipe tolerance and angular distortion
- Applications: ship-building, offshore, mechanical engineering, petrochemical industry, and sewerage works
- Suitable for drinking water, wastewater, compressed air, alcohol, and solids
- Product code: 85.34.212
- Bolt thickness: M10
- Length: 95 mm
- Seal material: EPDM
- Pipe diameter range: 72 - 80 mm
- Working pressure: 16 bar
-
