ID
1378779
$ 7.68
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
The Wichard Self-Locking Bow Shackle is a forged 316L stainless steel lyre shackle designed for marine and rigging applications requiring increased articulation and the ability to connect multiple lines, sheets, or cables. The self-locking pin engages directly into notches in the shackle body, eliminating the risk of accidental unscrewing. CE marked and individually serialized, this shackle range is available in diameters from 4 mm to 12 mm, with breaking loads from 700 kg up to 6000 kg and working loads up to 2080 kg.
- Description
- Ask a Question
-

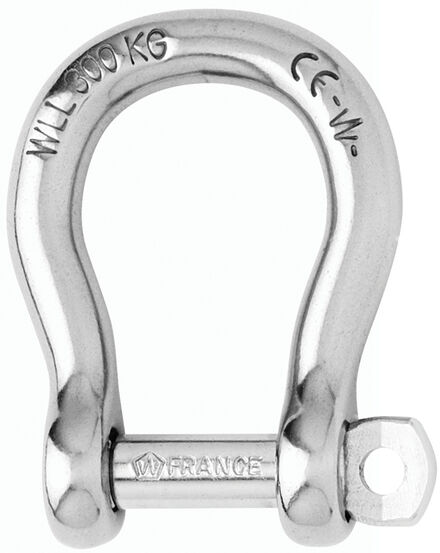

Wichard Self-Locking Bow Shackle 316L Stainless Steel – Forged Lyre Shackle, Ø4–12 mm
The Wichard Self-Locking Bow Shackle is manufactured from forged 316L stainless steel and features a patented self-locking system that secures the pin head into dedicated notches within the shackle body. This prevents accidental loosening caused by vibration, movement, or cyclic loading.
The bow (lyre) shape provides increased internal clearance compared to straight shackles, making it ideal when greater articulation is required or when multiple sheets, ropes, or cables must be connected to a single attachment point.
Designed for demanding marine environments, the shackle offers excellent corrosion resistance, notable working and breaking loads, CE marking, and individual serial numbering for traceability.
Key Features
- Forged 316L stainless steel construction
- Self-locking pin system
- No risk of accidental unscrewing
- Bow (lyre) design for increased articulation
- Suitable for connecting multiple sheets or cables
- Excellent corrosion resistance
- CE marked and individually serialized
- High working and breaking loads
Applications
- Marine rigging
- Sheet and halyard attachment points
- Block connections
- Connecting multiple ropes or cables
- Applications requiring greater movement and articulation
Available Variants
Wichard SKU Diameter Working Load WLL Breaking Load 1241 4 mm 320 kg 140 kg 700 kg 1242 5 mm 400 kg 200 kg 1000 kg 1243 6 mm 600 kg 300 kg 1500 kg 1244 8 mm 1000 kg 540 kg 2700 kg 1245 10 mm 1520 kg 860 kg 4300 kg 1246 12 mm 2080 kg 1200 kg 6000 kg
Technical Specifications
Diameter Weight A B F H 4 mm 9 g 18 mm 8 mm 28 mm 13 mm 5 mm 17 g 23 mm 10 mm 35 mm 16 mm 6 mm 30 g 28 mm 12 mm 43 mm 19.5 mm 8 mm 68 g 37 mm 16 mm 56 mm 25.5 mm 10 mm 137 g 47 mm 20 mm 71 mm 32 mm 12 mm 233 g 55 mm 27 mm 87 mm 38.5 mm
Construction
- Material: Forged 316L stainless steel
- Type: Self-locking bow (lyre) shackle
- Locking system: Pin head locks into dedicated body notches
- Certification: CE marked
- Traceability: Individual serial number
-
