ID
1378792
$ 10.50
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
The Wichard Captive Pin D Shackle is a forged 316L stainless steel shackle with an integrated captive pin that remains permanently connected to the shackle body, eliminating the risk of pin loss during installation or operation. The self-locking mechanism secures the pin in dedicated notches within the shackle body to prevent accidental unscrewing. Available in diameters from 4 mm to 10 mm, with working loads from 320 kg to 1560 kg and breaking loads from 1000 kg to 5200 kg, it is suitable for halyards, blocks, pulleys, and general marine rigging applications.
- Description
- Ask a Question
-

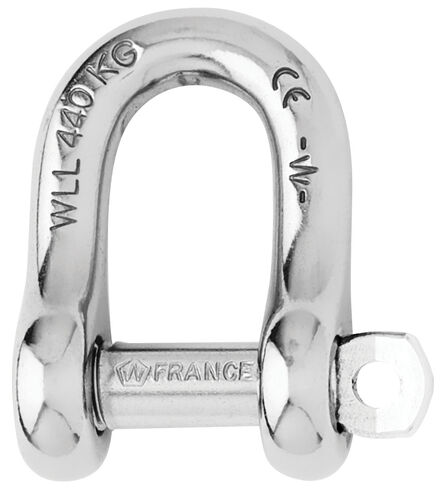

Wichard Captive Pin D Shackle 316L Stainless Steel – Ø4-10 mm
The Wichard Captive Pin D Shackle is manufactured from forged 316L stainless steel and features a captive pin design that remains permanently attached to the shackle body. This prevents accidental loss of the pin during handling, installation, maintenance, or operation.
The self-locking mechanism secures the shackle head into dedicated notches within the body, eliminating the risk of unintended loosening. Combined with the corrosion resistance of marine-grade 316L stainless steel, this makes the shackle a reliable solution for demanding marine and industrial applications.
The straight D-shackle profile is ideal for connecting two components such as halyard attachment points, blocks, pulleys, and other rigging hardware where a compact and secure connection is required.
Key Features
- Forged 316L stainless steel construction
- Captive pin permanently connected to the shackle body
- Self-locking mechanism prevents accidental unscrewing
- No risk of losing the pin during operation
- Excellent corrosion resistance
- High working and breaking loads
- Suitable for marine and industrial use
Applications
- Halyard attachment points
- Blocks and pulleys
- Marine rigging systems
- General fastening applications
- Industrial connections requiring secure hardware
Available Variants
Wichard SKU Diameter Working Load WLL Breaking Load Weight 1401 4 mm 320 kg 200 kg 1000 kg 9 g 1402 5 mm 480 kg 300 kg 1500 kg 16 g 1403 6 mm 680 kg 440 kg 2200 kg 28 g 1404 8 mm 1080 kg 720 kg 3600 kg 61 g 1405 10 mm 1560 kg 1040 kg 5200 kg 114 g
Dimensions
SKU Diameter A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) 1401 4 mm 13 8 5 9 4 24 22 1402 5 mm 16 10 6 11 5 30 30 1403 6 mm 20 12 7 14 6 36 32 1404 8 mm 26 16 9 18 8 47 42 1405 10 mm 33 20 11 21 9 58 53 -
