ID
1378749
$ 41.91
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
- 12
- 14
- 16
- 20
The Wichard HR Forged D Shackle is manufactured from forged HR stainless steel (17.4 PH) and offers significantly higher strength than comparable 316L stainless steel shackles. Designed for marine and industrial applications, this CE-marked right-hand shackle provides exceptional working and breaking loads while maintaining compact dimensions. Available in diameters from 8 mm to 20 mm, it delivers WLL ratings from 820 kg to 5,600 kg and breaking loads up to 28,000 kg.
- Description
- Ask a Question
-

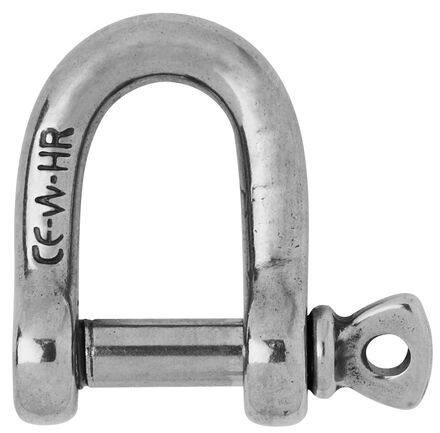

Wichard HR Forged D Shackle 17.4 PH Stainless Steel – Right-Hand High Resistance Shackle, Ø8–20 mm
The Wichard HR Forged D Shackle is manufactured from forged HR stainless steel (17.4 PH) and is designed for demanding marine and industrial applications. Thanks to its high-resistance material, a forged HR shackle can be up to 60% stronger than an equivalent 316L stainless steel shackle.
The shackle features remarkable working and breaking loads while maintaining compact dimensions and low weight. CE marking and defined Working Load Limits (WLL) make it suitable for industrial lifting and load-handling applications.
Key Features
- Forged HR stainless steel (17.4 PH)
- Right-hand D shackle design
- Up to 60% stronger than comparable 316L stainless steel shackles
- High working and breaking loads
- CE marked
- Suitable for marine and industrial applications
- Defined Working Load Limit (WLL)
Available Variants
Wichard SKU VDM-Reya SKU Diameter WLL Breaking Load Weight 11204 AC0011204 8 mm 820 kg 4100 kg 52 g 11205 AC0011205 10 mm 1200 kg 6000 kg 102 g 11206 AC0011206 12 mm 2000 kg 10000 kg 192 g 11207 AC0011207 14 mm 2400 kg 12000 kg 304 g 11208 AC0011208 16 mm 3800 kg 19000 kg 464 g 11209 AC0011209 20 mm 5600 kg 28000 kg 860 g
Technical Specifications
Diameter Material Working Load WLL Breaking Load 8 mm HR 17.4 PH Stainless Steel 1760 kg 820 kg 4100 kg 10 mm HR 17.4 PH Stainless Steel 2640 kg 1200 kg 6000 kg 12 mm HR 17.4 PH Stainless Steel 3600 kg 2000 kg 10000 kg 14 mm HR 17.4 PH Stainless Steel 5120 kg 2400 kg 12000 kg 16 mm HR 17.4 PH Stainless Steel 6800 kg 3800 kg 19000 kg 20 mm HR 17.4 PH Stainless Steel 8800 kg 5600 kg 28000 kg
Dimensions
Diameter A B C D E F G 8 mm 26 mm 18 mm 8 mm 16 mm 7 mm 48 mm 46 mm 10 mm 33 mm 20 mm 10 mm 20 mm 9 mm 60 mm 58 mm 12 mm 42 mm 27 mm 12 mm 24 mm 13 mm 72 mm 68 mm 14 mm 49 mm 28 mm 14 mm 28 mm 14 mm 84 mm 78 mm 16 mm 56 mm 32 mm 16 mm 32 mm 16 mm 96 mm 87 mm 20 mm 70 mm 40 mm 20 mm 40 mm 20 mm 120 mm 108 mm
Applications
- Standing rigging connections
- Marine deck hardware installations
- Industrial lifting systems
- Load securing applications
- High-load marine equipment
-
