The Wichard Self-Locking Allen Head Pin Bow Shackle Ø8 mm is a forged 316L stainless steel shackle featuring a recessed hexagonal hollow pin that locks securely into the shackle body. The flush pin design eliminates protrusions that could snag sails, lines, or deck equipment while providing reliable load handling. With a working load of 960 kg, WLL of 540 kg, breaking load of 2700 kg, and CE marking, it is suitable for marine rigging and industrial lifting applications where compact dimensions and secure fastening are required.
- Description
- Ask a Question
-

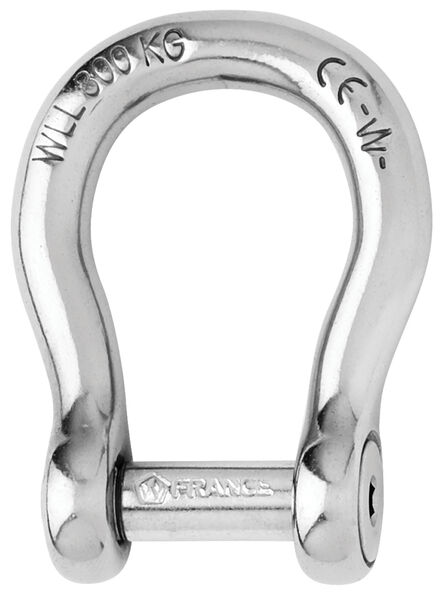

Wichard Self-Locking Allen Head Pin Bow Shackle 316L Stainless Steel – Ø8 mm
The Wichard Self-Locking Allen Head Pin Bow Shackle is manufactured from forged 316L stainless steel and features a recessed hexagonal hollow pin designed to remain flush with the shackle body. This construction eliminates any protruding pin head, reducing the risk of snagging sails, ropes, or other onboard equipment.
The self-locking mechanism prevents accidental unscrewing by securing the pin directly into the shackle body. Combined with the bow-shaped design, the shackle provides increased articulation and flexibility while maintaining excellent strength and corrosion resistance.
CE marking ensures compliance for industrial lifting applications, while the forged stainless steel construction delivers remarkable working and breaking loads.
Key Features
- Forged 316L stainless steel construction
- Self-locking hexagonal hollow pin
- Flush pin design prevents snagging on sails and lines
- No risk of unintentional unscrewing
- Excellent corrosion resistance
- High working and breaking loads
- CE marked
- Suitable for marine and industrial applications
Applications
- Marine rigging systems
- Anchor and mooring connections
- Sailboat hardware attachments
- Applications where snag-free hardware is required
- Industrial lifting applications
Technical Specifications
Parameter Value Brand Wichard SKU 1344 VDM-Reya SKU AC001344 EAN 3587790013443 Material Forged 316L Stainless Steel Shackle Type Self-Locking Bow Shackle Pin Type Hexagonal Hollow Allen Head Pin Diameter 8 mm Working Load 960 kg WLL 540 kg Breaking Load 2700 kg Weight 67 g

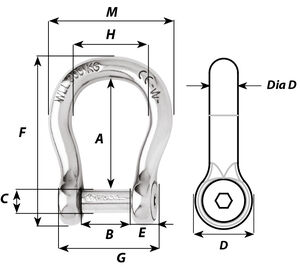

Dimensions
Dimension Value A 37 mm B 16 mm C 8 mm D 16 mm D Diameter 8 mm E 7 mm F 56 mm G 32 mm M 40 mm -
