The Wichard Self-Locking Twisted Shackle is a forged 316L stainless steel torso shackle designed for applications where the load is applied at 90° to the shackle axis. Its self-locking pin mechanism secures the shackle head in dedicated notches within the body, eliminating the risk of accidental unscrewing. Ideal for connecting non-articulated components, rail-mounted pulleys, and sheet hoist systems. Available in Ø5 mm, Ø6 mm, and Ø10 mm sizes with breaking loads up to 1,500 kg and working loads up to 600 kg.
- Description
- Ask a Question
-

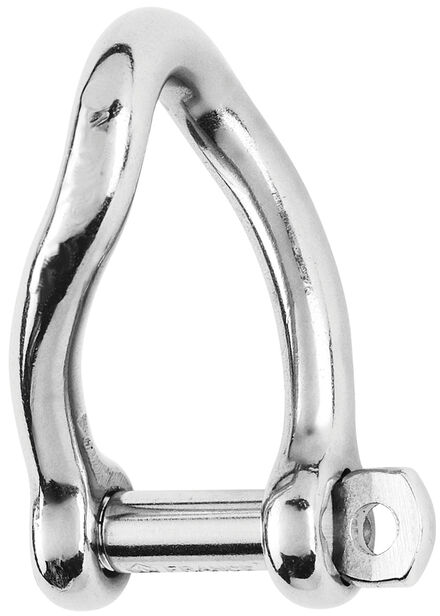

Wichard Self-Locking Twisted Shackle 316L Stainless Steel – Forged Torso Shackle, Ø5–10 mm
The Wichard Self-Locking Twisted Shackle is manufactured from forged 316L stainless steel and features a secure self-locking pin system. The pin head locks directly into one of the notches integrated into the shackle body, preventing accidental loosening caused by vibration or repeated loading.
The twisted (torso) design is specifically engineered for applications where the load acts at 90° to the shackle axis. This makes it particularly suitable for connecting non-articulated fittings, rail-mounted pulleys, and sheet hoist systems where proper load alignment is required.
Manufactured from marine-grade 316L stainless steel, the shackle offers excellent corrosion resistance, durability, and reliable performance in demanding marine environments.
Key Features
- Forged 316L stainless steel construction
- Self-locking pin mechanism
- No risk of accidental unscrewing
- Twisted (torso) configuration for 90° load applications
- Excellent corrosion resistance
- High working and breaking loads
- Suitable for marine rigging and deck hardware installations
Applications
- Rail-mounted pulley installations
- Sheet hoist systems
- Marine rigging
- Deck hardware connections
- Applications where force is applied at 90° to the shackle axis
Available Variants
Wichard SKU Diameter Working Load Breaking Load 1222 5 mm 480 kg 1100 kg 1223 6 mm 600 kg 1500 kg 1225 10 mm 288 kg 1440 kg
Technical Specifications
Specification 5 mm 6 mm 10 mm Material 316L Stainless Steel 316L Stainless Steel 316L Stainless Steel Working Load 480 kg 600 kg 288 kg Breaking Load 1100 kg 1500 kg 1440 kg
Dimensions
Diameter A B 5 mm 26 mm 10 mm 6 mm 30 mm 12 mm 10 mm 50 mm 20 mm
Construction
- Material: Forged 316L stainless steel
- Type: Self-locking twisted (torso) shackle
- Locking system: Shackle head locks into dedicated body notches
- Designed for loads acting at 90° to the shackle axis
-
