ID
1378756
$ 51.50
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
- 12
- 14
- 16
- 20
- 24
The Wichard HR Forged Bow Shackle is manufactured from forged HR stainless steel (17.4 PH) and delivers exceptional strength for marine and industrial applications. Up to 60% stronger than comparable 316L stainless steel shackles, this CE-marked lyre shackle features a serial number for traceability and offers Working Load Limits from 820 kg to 7,000 kg with breaking loads up to 35,000 kg. Available in diameters from 8 mm to 24 mm, it is designed for demanding load-bearing and lifting applications.
- Description
- Ask a Question
-

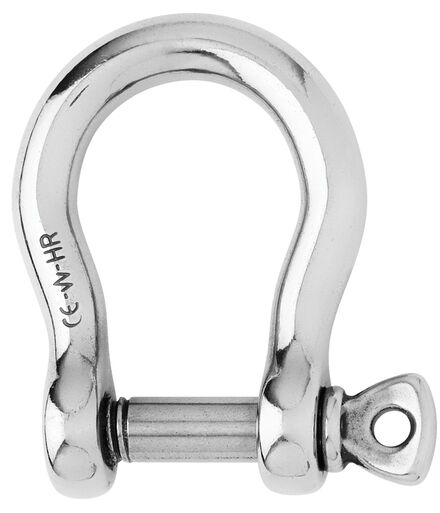

Wichard HR Forged Bow Shackle 17.4 PH Stainless Steel – High Resistance Lyre Shackle, Ø8–24 mm
The Wichard HR Forged Bow Shackle is manufactured from forged HR stainless steel (17.4 PH) and is engineered for applications requiring maximum strength, reliability, and corrosion resistance. The bow (lyre) shape provides increased articulation and flexibility compared to standard D shackles.
Thanks to its HR forged construction, this shackle can be up to 60% stronger than an equivalent 316L stainless steel shackle while maintaining compact dimensions. Each shackle is CE marked and individually serialized for traceability.
Key Features
- Forged HR stainless steel (17.4 PH)
- Bow (lyre) shackle design
- Up to 60% stronger than comparable 316L stainless steel shackles
- Exceptional working and breaking loads
- CE marked
- Individual serial number
- Suitable for marine and industrial applications
- Defined Working Load Limit (WLL)
Available Variants
Wichard SKU VDM-Reya SKU Diameter WLL Breaking Load Weight 11244 AC0011244 8 mm 820 kg 4100 kg 68 g 11245 AC0011245 10 mm 1200 kg 6000 kg 136 g 11246 AC0011246 12 mm 2000 kg 10000 kg 224 g 11240 AC0011240 14 mm 2400 kg 12000 kg 364 g 11247 AC0011247 16 mm 3800 kg 19000 kg 526 g 11248 AC0011248 20 mm 5600 kg 28000 kg 1.011 kg 11249 AC0011249 24 mm 7000 kg 35000 kg 1.706 kg
Technical Specifications
Diameter Material Working Load WLL Breaking Load 8 mm HR 17.4 PH Stainless Steel 1760 kg 820 kg 4100 kg 10 mm HR 17.4 PH Stainless Steel 2640 kg 1200 kg 6000 kg 12 mm HR 17.4 PH Stainless Steel 3600 kg 2000 kg 10000 kg 14 mm HR 17.4 PH Stainless Steel 5120 kg 2400 kg 12000 kg 16 mm HR 17.4 PH Stainless Steel 6800 kg 3800 kg 19000 kg 20 mm HR 17.4 PH Stainless Steel 8800 kg 5600 kg 28000 kg 24 mm HR 17.4 PH Stainless Steel 12800 kg 7000 kg 35000 kg
Dimensions
Diameter A B C D E H M 8 mm 37 mm 16 mm 8 mm 16 mm 7 mm 26 mm 42 mm 10 mm 47 mm 20 mm 10 mm 20 mm 9 mm 32 mm 52 mm 12 mm 55 mm 24 mm 12 mm 24 mm 10 mm 38 mm 63 mm 14 mm 63 mm 28 mm 14 mm 28 mm 13 mm 44 mm 72 mm 16 mm 70 mm 32 mm 16 mm 32 mm 15 mm 50 mm 83 mm 20 mm 80 mm 40 mm 20 mm 40 mm 18 mm 60 mm 100 mm 24 mm 108 mm 48 mm 24 mm 47 mm 20 mm 70 mm 118 mm
Applications
- Standing rigging systems
- Marine deck hardware connections
- Industrial lifting applications
- Load securing systems
- Heavy-duty marine installations
-
