The Wichard Self-Locking Long D Shackle is forged from 316L stainless steel and features a secure self-locking pin mechanism that locks into dedicated notches within the shackle body, eliminating the risk of accidental unscrewing. The extended body design provides additional reach compared to standard D shackles, making it suitable for rigging, marine hardware, and industrial fastening applications. Available in 6 mm and 8 mm diameters with Working Load Limits up to 540 kg and breaking loads up to 2,700 kg. CE marked for industrial lifting applications.
- Description
- Ask a Question
-

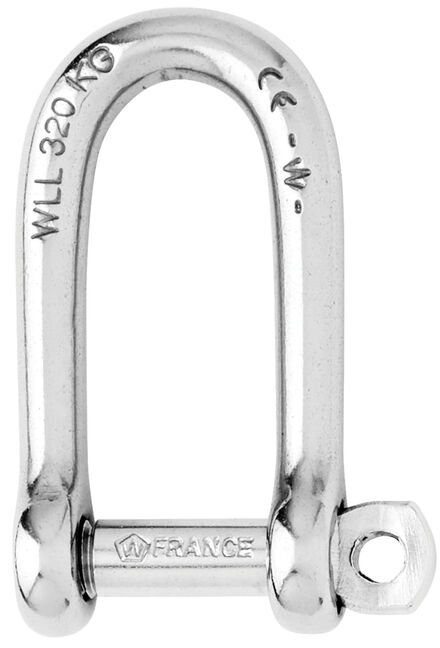

Wichard Self-Locking Long D Shackle 316L Stainless Steel – Forged Long Shackle, Ø6–8 mm
The Wichard Self-Locking Long D Shackle is manufactured from forged 316L stainless steel and incorporates a secure self-locking pin system. The pin head locks directly into one of the notches integrated into the shackle body, preventing accidental loosening caused by vibration or repeated loading.
The elongated shackle design provides additional clearance and reach compared to standard D shackles, making it suitable for rigging systems, marine hardware installations, lifting applications, and connecting components where extra length is required.
Each shackle is CE marked and offers excellent corrosion resistance for demanding marine and industrial environments.
Key Features
- Forged 316L stainless steel construction
- Extended long-body shackle design
- Self-locking pin mechanism
- No risk of accidental unscrewing
- Excellent corrosion resistance
- High working and breaking loads
- CE marked
- Suitable for marine and industrial applications
Applications
- Rigging systems
- Marine deck hardware
- Lifting and industrial fastening applications
- Connecting blocks and fittings
- Situations requiring additional shackle length
Available Variants
Wichard SKU Diameter WLL Breaking Load Weight 1213 6 mm 320 kg 1600 kg 27 g 1214 8 mm 540 kg 2700 kg 66 g
Technical Specifications
Specification 6 mm 8 mm Material 316L Stainless Steel 316L Stainless Steel Working Load 600 kg 1000 kg WLL 320 kg 540 kg Breaking Load 1600 kg 2700 kg Weight 27 g 66 g
Dimensions
Dimension 6 mm 8 mm A 33 mm 45 mm B 12 mm 16 mm C 6 mm 8 mm D 12 mm 16 mm E 5 mm 7 mm F 47 mm 64 mm G 31 mm 41 mm -
