ID
1381973
$ 14.51
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
The Wichard Quick Release Key Pin Shackle is a forged 316L stainless steel shackle designed for frequent opening and closing with a simple half-turn operation. The captive quick-release pin remains integrated with the shackle body, eliminating the risk of losing components during use. Available in diameters of 5 mm, 6 mm, and 8 mm, with working loads from 400 kg to 800 kg and breaking loads up to 2300 kg, it is particularly suitable for halyards, sail handling systems, and applications requiring regular shackle operation.
- Description
- Ask a Question
-

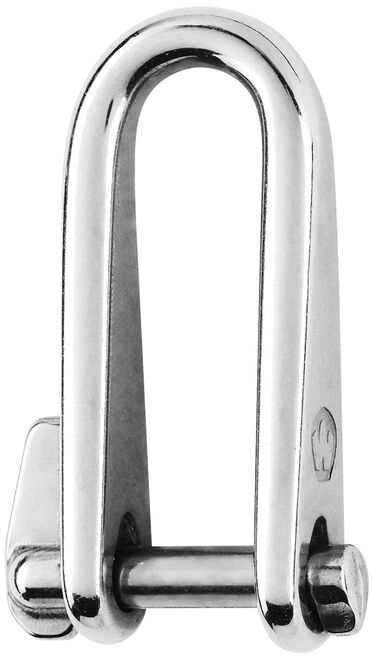

Wichard Quick Release Key Pin Shackle 316L Stainless Steel – Ø5-8 mm
The Wichard Quick Release Key Pin Shackle is manufactured from forged 316L stainless steel and designed for applications where shackles must be opened and closed frequently. Its quick-release mechanism operates with a simple half-turn of the pin, allowing fast handling while maintaining excellent strength and reliability.
The captive pin remains permanently connected to the shackle body, eliminating the risk of losing parts during operation. Marine-grade 316L stainless steel construction provides excellent corrosion resistance for demanding onboard environments.
This shackle is particularly suited for halyards, rigging systems, and other applications where regular connection and disconnection are required.
Key Features
- Forged 316L stainless steel construction
- Quick opening and closing with a simple half-turn
- Captive pin remains attached to the shackle body
- No risk of losing the pin during operation
- Excellent working and breaking loads
- High corrosion resistance for marine environments
- Designed for frequent handling applications
Applications
- Halyards
- Running rigging systems
- Sail handling equipment
- Frequent connection and disconnection points
- General marine fastening applications
Available Variants
Wichard SKU Diameter Working Load Breaking Load Weight 1432 5 mm 400 kg 1000 kg 31 g 1433 6 mm 520 kg 1500 kg 48 g 1434 8 mm 800 kg 2300 kg 121 g
Dimensions
SKU Diameter A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) 1432 5 mm 37 13 5 11 4 49 31 1433 6 mm 45 16 6 13 4 60 37 1434 8 mm 59 21 8 17 6 79 49 -
