ID
1378786
$ 16.19
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 12
The Wichard Self-Locking Allen Head Pin D Shackle is a forged 316L stainless steel shackle designed for applications where compact dimensions and smooth profiles are essential. The recessed hexagon socket pin locks securely into notches in the shackle body, preventing accidental unscrewing while eliminating any protruding parts that could snag sails, ropes, or deck equipment. CE marked and individually serialized, this range is available in diameters from 6 mm to 12 mm, with working loads up to 2080 kg and breaking loads up to 6000 kg.
- Description
- Ask a Question
-

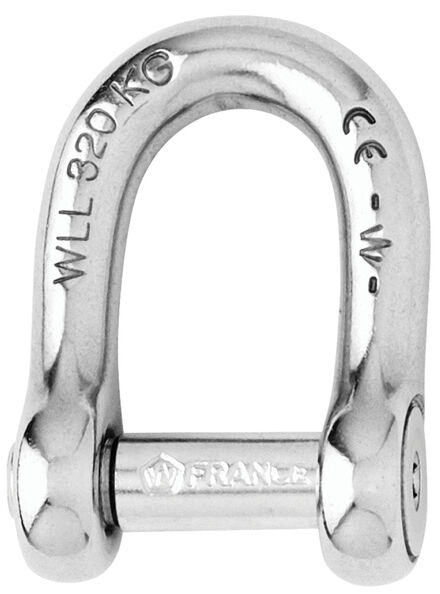

Wichard Self-Locking Allen Head Pin D Shackle 316L Stainless Steel – Ø6–12 mm
The Wichard Self-Locking Allen Head Pin D Shackle is manufactured from forged 316L stainless steel and features a recessed hexagon socket pin that remains flush with the shackle body. This design eliminates any protruding pin head, reducing the risk of snagging sails, ropes, covers, or deck hardware.
The self-locking mechanism secures the pin into dedicated notches within the shackle body, preventing accidental loosening caused by vibration or repeated loading. The result is a compact, secure, and highly reliable connection suitable for demanding marine applications.
Each shackle is CE marked and individually serialized for traceability and quality assurance.
Key Features
- Forged 316L stainless steel construction
- Self-locking hexagon socket pin
- Flush pin design prevents snagging on sails and lines
- No risk of unintentional unscrewing
- Excellent corrosion resistance
- High working and breaking loads
- CE marked
- Individual serial number for traceability
Applications
- Anchor chain links to facilitate passage through bow rollers and davits
- Halyard connections where sail protection is important
- Rigging systems with limited available space
- Marine deck hardware connections
- General sailing and yacht rigging applications
Available Variants
Wichard SKU Diameter Working Load WLL Breaking Load Weight 1303 6 mm 600 kg 320 kg 1600 kg 22 g 1304 8 mm 960 kg 540 kg 2700 kg 53 g 1305 10 mm 1440 kg 860 kg 4300 kg 99 g 1306 12 mm 2080 kg 1200 kg 6000 kg 187 g
Dimensions
Diameter A B E F G 6 mm 19 mm 12 mm - - - 8 mm 26 mm 16 mm 7 mm 46 mm 33 mm 10 mm 33 mm 20 mm 9 mm 57 mm 41 mm 12 mm 42 mm 27 mm 10 mm 73 mm 49 mm
Construction
- Material: Forged 316L stainless steel
- Type: Self-locking D shackle
- Pin Type: Recessed hexagon socket pin
- Certification: CE marked
- Traceability: Individual serial number
-
