The Wichard Self-Locking D Shackle is forged from 316L stainless steel and features an integrated self-locking pin system that secures the shackle head in dedicated notches within the body, eliminating the risk of accidental unscrewing. Designed for marine and industrial fastening applications, it combines excellent corrosion resistance with high working and breaking loads. Available in diameters from 4 mm to 14 mm, with Working Load Limits ranging from 140 kg to 1,600 kg and breaking loads up to 8,000 kg. CE marked and individually serialized for traceability.
- Description
- Ask a Question
-

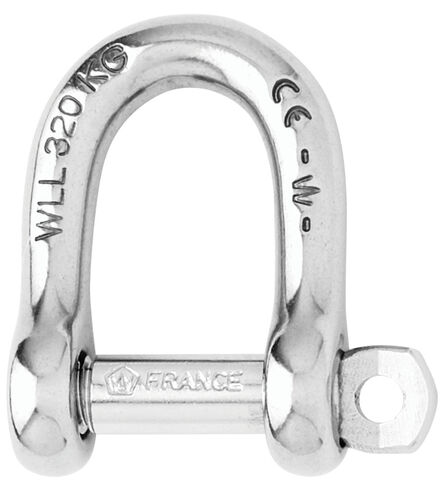

Wichard Self-Locking D Shackle 316L Stainless Steel – Forged Straight Shackle, Ø4–14 mm
The Wichard Self-Locking D Shackle is manufactured from forged 316L stainless steel and features a patented self-locking pin system. The head of the pin locks securely into one of the notches integrated into the shackle body, preventing accidental loosening caused by vibration or repeated loading.
Designed for marine, sailing, rigging, and industrial fastening applications, this straight shackle provides excellent corrosion resistance, reliable load capacity, and secure operation. Each shackle is CE marked and supplied with an individual serial number for identification and traceability.
Key Features
- Forged 316L stainless steel construction
- Self-locking pin design
- No risk of accidental unscrewing
- High working and breaking loads
- Excellent corrosion resistance
- CE marked
- Individual serial number
- Suitable for marine and industrial applications
Typical Applications
- Halyard attachment points
- Block connections
- Rigging systems
- Joining two mechanical elements
- General marine deck hardware installations
Available Variants
Wichard SKU Diameter WLL Breaking Load Weight 1201 4 mm 140 kg 700 kg 7 g 1202 5 mm 200 kg 1000 kg 13 g 1203 6 mm 320 kg 1600 kg 22 g 1204 8 mm 540 kg 2700 kg 55 g 1205 10 mm 860 kg 4300 kg 98 g 1206 12 mm 1200 kg 6000 kg 193 g 1207 14 mm 1600 kg 8000 kg 312 g
Technical Specifications
Diameter Material Working Load WLL Breaking Load 4 mm 316L Stainless Steel 320 kg 140 kg 700 kg 5 mm 316L Stainless Steel 400 kg 200 kg 1000 kg 6 mm 316L Stainless Steel 600 kg 320 kg 1600 kg 8 mm 316L Stainless Steel 1000 kg 540 kg 2700 kg 10 mm 316L Stainless Steel 1520 kg 860 kg 4300 kg 12 mm 316L Stainless Steel 2080 kg 1200 kg 6000 kg 14 mm 316L Stainless Steel 2400 kg 1600 kg 8000 kg
Dimensions
Diameter A B C D E F G 4 mm 13 mm 8 mm 4 mm 8 mm 3 mm 23 mm 20 mm 5 mm 16 mm 10 mm 5 mm 10 mm 4 mm 29 mm 26 mm 6 mm 20 mm 12 mm 6 mm 12 mm 5 mm 34 mm 31 mm 8 mm 26 mm 16 mm 8 mm 16 mm 7 mm 45 mm 41 mm 10 mm 33 mm 20 mm 10 mm 19 mm 9 mm 57 mm 52 mm 12 mm 42 mm 27 mm 12 mm 24 mm 11 mm 73 mm 62 mm 14 mm 47 mm 28 mm 14 mm 28 mm 13 mm 82 mm 78 mm -
