ID
1378861
$ 2.47
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
The Euromarine Straight Shackle with Captive Pin is manufactured from A4 stainless steel and features a captive pin design that helps prevent accidental loss during installation and operation. Available in diameters from 4 mm to 12 mm, with internal widths from 8 mm to 24 mm and breaking loads from 700 kg to 6,600 kg, it is suitable for marine, anchoring, mooring, and general rigging applications requiring reliable corrosion resistance.
- Description
- Ask a Question
-

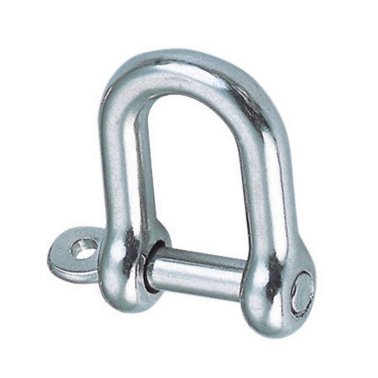

Euromarine A4 Stainless Steel Straight Shackle with Captive Pin – Ø4 mm, Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm, Ø12 mm
The Euromarine Straight Shackle with Captive Pin is manufactured from A4 stainless steel and is designed for marine environments where corrosion resistance and secure fastening are essential. The captive pin design helps keep the pin attached to the shackle body, reducing the risk of accidental loss during use.
Key Features
- A4 stainless steel construction
- Captive pin design
- High corrosion resistance
- Straight shackle configuration
- Suitable for marine, anchoring, mooring, and rigging applications
Available Variants
Diameter Internal Length (L) Internal Width (B) Breaking Load Bulk SKU Packed SKU Ø4 mm 14 mm 8 mm 700 kg MDE044 - Ø5 mm 16 mm 10 mm 1,000 kg MDE054 005214 Ø6 mm 21 mm 12 mm 1,500 kg MDE064 005215 Ø8 mm 28 mm 16 mm 3,000 kg MDE084 005216 Ø10 mm 34 mm 20 mm 4,300 kg MDE104 SMMDE10P Ø12 mm 36 mm 24 mm 6,600 kg MDE124 SMMDE12P
Technical Specifications
- Material: A4 Stainless Steel
- Type: Straight Shackle with Captive Pin
- Diameter Range: 4 mm to 12 mm
- Internal Width Range: 8 mm to 24 mm
- Internal Length Range: 14 mm to 36 mm
- Breaking Load Range: 700 kg to 6,600 kg
Applications
- Anchoring systems
- Mooring systems
- Rigging connections
- Chain and rope assemblies
- General marine hardware installations
Brand
- Manufacturer: Euromarine
-
