ID
1378868
$ 3.82
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
The Euromarine Wide Straight Shackle is manufactured from A4 stainless steel and features an enlarged internal width for applications requiring additional clearance. Available in diameters from 5 mm to 10 mm, with internal widths from 24 mm to 41 mm and breaking loads from 750 kg to 3,350 kg, it is suitable for marine rigging, mooring, anchoring, and general fastening applications in corrosive environments.
- Description
- Ask a Question
-

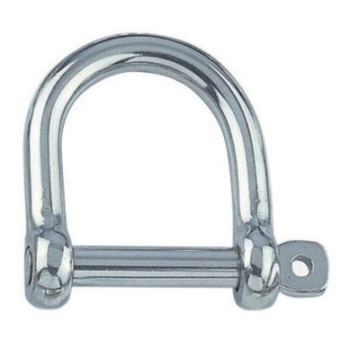

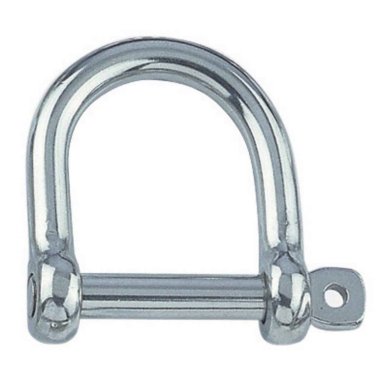

Euromarine Wide Straight Shackle A4 Stainless Steel – Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm
The Euromarine Wide Straight Shackle is manufactured from A4 stainless steel and designed for marine and industrial applications requiring a larger internal width than a standard straight shackle. The wide-body design provides additional clearance for ropes, chains, straps, and hardware connections while maintaining high strength and corrosion resistance.
Key Features
- A4 stainless steel construction
- Wide straight shackle design
- High corrosion resistance for marine environments
- Suitable for anchoring, mooring, and rigging applications
- Available in multiple sizes
Available Variants
Diameter Internal Length (L) Internal Width (B) Breaking Load Bulk SKU Packed SKU Ø5 mm 20 mm 25 mm 750 kg MDLG054 005205 Ø6 mm 33 mm 24 mm 1,350 kg MDLG064 005206 Ø8 mm 31 mm 26 mm 2,500 kg MDLG084 005207 Ø10 mm 55 mm 41 mm 3,350 kg MDLG104 005208
Technical Specifications
- Material: A4 Stainless Steel
- Type: Wide Straight Shackle
- Diameter Range: 5 mm to 10 mm
- Internal Width Range: 24 mm to 41 mm
- Internal Length Range: 20 mm to 55 mm
- Breaking Load Range: 750 kg to 3,350 kg
Applications
- Mooring systems
- Anchor connections
- Marine rigging
- Chain and rope assemblies
- General marine fastening applications
Brand
- Manufacturer: Euromarine
-
