ID
1378879
$ 3.85
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 12
The Euromarine Straight Shackle with Hex Socket Pin is manufactured from A4 stainless steel and features a recessed hex socket screw pin for a secure and streamlined connection. Available in diameters from 6 mm to 12 mm, with internal widths from 12 mm to 24 mm and breaking loads from 1,500 kg to 5,400 kg, it is suitable for marine rigging, mooring, anchoring, and general fastening applications where corrosion resistance and secure locking are required.
- Description
- Ask a Question
-

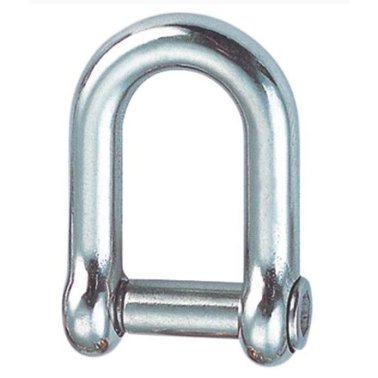

Euromarine Straight Shackle with Hex Socket Pin A4 Stainless Steel – Ø6 mm, Ø8 mm, Ø10 mm, Ø12 mm
The Euromarine Straight Shackle with Hex Socket Pin is manufactured from A4 stainless steel and designed for marine and industrial applications requiring a secure and compact fastening solution. The recessed hex socket pin provides a clean profile while allowing reliable tightening and installation. A4 stainless steel construction ensures excellent corrosion resistance in demanding marine environments.
Key Features
- A4 stainless steel construction
- Straight shackle design
- Hex socket screw pin
- High corrosion resistance
- Compact and secure connection
- Suitable for marine and general fastening applications
Available Variants
Diameter Internal Width (A) Internal Length (L) Breaking Load Bulk SKU Packed SKU Ø6 mm 12 mm 21 mm 1,500 kg MDVA064 005220 Ø8 mm 16 mm 28 mm 2,200 kg MDVA084 005221 Ø10 mm 20 mm 35 mm 3,700 kg MDVA104 005222 Ø12 mm 24 mm 45 mm 5,400 kg MDVA124 005223
Technical Specifications
- Material: A4 Stainless Steel
- Type: Straight Shackle with Hex Socket Pin
- Diameter Range: 6 mm to 12 mm
- Internal Width Range: 12 mm to 24 mm
- Internal Length Range: 21 mm to 45 mm
- Breaking Load Range: 1,500 kg to 5,400 kg
Applications
- Marine rigging
- Mooring systems
- Anchor connections
- Deck hardware installations
- General marine fastening applications
Brand
- Manufacturer: Euromarine
-
