ID
1378873
$ 4.93
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 12
The Euromarine Long Straight Shackle with Captive Pin is manufactured from A4 stainless steel and designed for applications requiring increased reach and clearance. Available in diameters from 5 mm to 12 mm, with internal lengths from 37 mm to 90 mm and breaking loads from 1,000 kg to 6,600 kg, it provides a secure and corrosion-resistant connection for marine rigging, mooring, anchoring, and deck hardware installations.
- Description
- Ask a Question
-

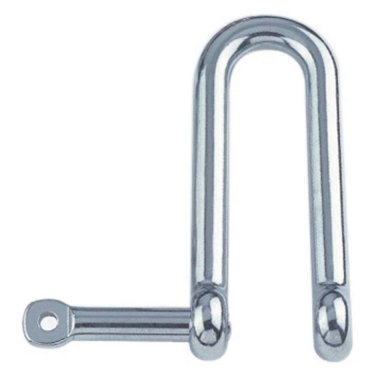

Euromarine Long Straight Shackle with Captive Pin A4 Stainless Steel – Ø5 mm, Ø6 mm, Ø8 mm, Ø10 mm, Ø12 mm
The Euromarine Long Straight Shackle with Captive Pin is manufactured from A4 stainless steel and features an extended body design for applications requiring additional length and clearance. The captive pin design helps prevent accidental loss during installation and maintenance, while the A4 stainless steel construction provides excellent corrosion resistance in marine environments.
Key Features
- A4 stainless steel construction
- Long straight shackle design
- Captive pin configuration
- Excellent corrosion resistance
- Suitable for marine and general fastening applications
- Available in multiple sizes
Available Variants
Diameter Internal Width (A) Internal Length (L) Breaking Load Bulk SKU Packed SKU Ø5 mm 10 mm 37 mm 1,000 kg MDLO054 SMMDLO051P Ø6 mm 12 mm 43 mm 1,500 kg MDLO064 SMMDLO06P Ø8 mm 16 mm 60 mm 3,000 kg MDLO084 SMMDLO08P Ø10 mm 20 mm 75 mm 4,300 kg MDLO104 SMMDLO10P Ø12 mm 24 mm 90 mm 6,600 kg MDLO124 -
Technical Specifications
- Material: A4 Stainless Steel
- Type: Long Straight Shackle with Captive Pin
- Diameter Range: 5 mm to 12 mm
- Internal Width Range: 10 mm to 24 mm
- Internal Length Range: 37 mm to 90 mm
- Breaking Load Range: 1,000 kg to 6,600 kg
Applications
- Mooring systems
- Anchor connections
- Marine rigging
- Deck hardware installations
- General marine fastening applications
Brand
- Manufacturer: Euromarine
-
