ID
1378884
$ 4.92
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
- 13
- 16
- 19
- 22
- 25
The Euromarine Bow Shackle is manufactured from A4 stainless steel and designed for marine, mooring, anchoring, and rigging applications requiring a wider bow profile. Available in diameters from 4 mm to 25 mm, with internal widths from 8 mm to 50 mm and breaking loads from 800 kg to 23,000 kg, these shackles provide high strength, excellent corrosion resistance, and versatile connection options for ropes, chains, and marine hardware.
- Description
- Ask a Question
-

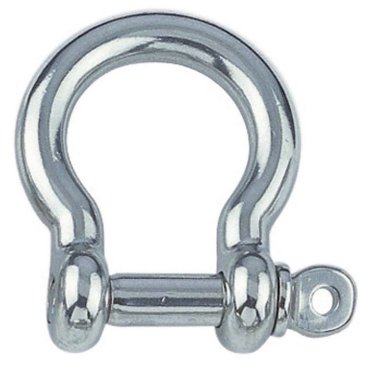

Euromarine Bow Shackle A4 Stainless Steel – Ø4 mm to Ø25 mm
The Euromarine Bow Shackle is manufactured from high-quality A4 stainless steel and is suitable for marine environments where strength and corrosion resistance are essential. The bow shape provides additional internal space compared to straight shackles, making it suitable for connecting multiple lines, chains, straps, or hardware components.
Key Features
- A4 stainless steel construction
- Bow shackle design with increased internal clearance
- Excellent corrosion resistance
- Suitable for marine, mooring, anchoring, and rigging applications
- Available in a wide range of sizes
Available Variants
Diameter Internal Width (A) Internal Length (L) Bow Width (R) Breaking Load Ø4 mm 8 mm 14 mm 14 mm 800 kg Ø5 mm 10 mm 17 mm 17 mm 1,200 kg Ø6 mm 12 mm 21 mm 21 mm 1,800 kg Ø8 mm 16 mm 28 mm 28 mm 2,800 kg Ø10 mm 20 mm 35 mm 34 mm 4,300 kg Ø12 mm 24 mm 42 mm 42 mm 6,500 kg Ø13 mm 26 mm 45 mm 45 mm 7,500 kg Ø16 mm 32 mm 56 mm 56 mm 10,000 kg Ø19 mm 38 mm 66 mm 66 mm 16,000 kg Ø22 mm 44 mm 77 mm 77 mm 21,000 kg Ø25 mm 50 mm 87.5 mm 87 mm 23,000 kg
Technical Specifications
- Material: A4 Stainless Steel
- Type: Bow Shackle
- Diameter Range: 4 mm to 25 mm
- Internal Width Range: 8 mm to 50 mm
- Internal Length Range: 14 mm to 87.5 mm
- Breaking Load Range: 800 kg to 23,000 kg
Applications
- Anchor and chain connections
- Mooring systems
- Marine rigging
- Connecting multiple ropes or fittings
- General marine fastening applications
Product Codes
Diameter Bulk SKU Packed SKU Ø4 mm ML044 007821 Ø5 mm ML054 007822 Ø6 mm ML064 007823 Ø8 mm ML084 007824 Ø10 mm ML104 007825 Ø12 mm ML124 007826 Ø13 mm - 007827 Ø16 mm ML164 007828 Ø19 mm 773824 773821 Ø22 mm 773825 773822 Ø25 mm 773826 773823
Brand
- Manufacturer: Euromarine
-
