The Wichard 11205 10 mm D-Shackle forged in HR 17.4 PH stainless steel handles high industrial loads, providing a working load of 2640 kg, WLL of 1200 kg, and breaking load of 6000 kg. It weighs 102 g, CE marked, and is intended for robust lifting and attachment tasks, not for mooring.
- Description
- Ask a Question
-

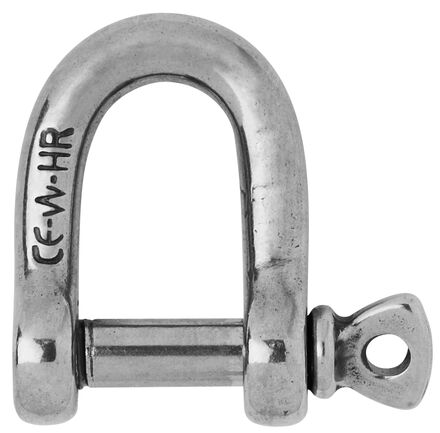

Wichard 11205 - D-Shackle HR Stainless Steel 10 mm
Forged in HR stainless steel grade 17,4 PH, the 10 mm D-shackle is built to handle high loads while maintaining excellent reliability in industrial applications.
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Applications requesting high loads
- Standard applications of shackle
- Attachment applications: blocks, head …
- Do not use for mooring applications
- Materials: HR 17.4 PH stainless steel grade
- Working load: 2640 kg
- WLL: 1200 kg
- Breaking load: 6000 kg
- Weight: 102 g

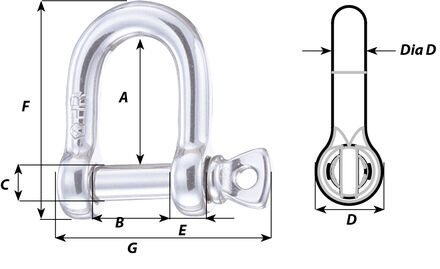

- A: 33 mm
- B: 20 mm
- C: 10 mm
- D: 20 mm
- D diameter: 10 mm
- E: 9 mm
- F: 60 mm
- G: 58 mm
- Item number: WR11205
-
