ID
1304341
$ 102.47
1-2 weeks delivery time
-
+
The Wichard 11215 Long 10 mm D-Shackle is a high-resistance HR 17-4 PH stainless steel shackle designed for industrial lifting, offering a working load of 2640 kg, WLL of 1200 kg, and breaking load of 6000 kg. It weighs 164 g and provides enhanced strength compared to standard 316L stainless steel shackles.
- Description
- Ask a Question
-

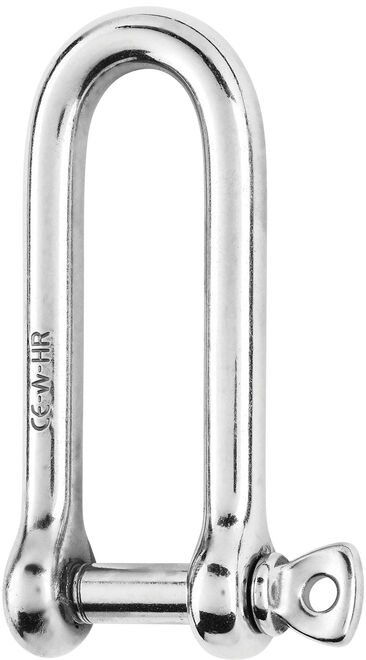

Wichard 11215 - Long D-Shackle HR Stainless Steel 10 mm
This forged long D-shackle is made from high-resistance (HR) stainless steel grade 17-4 PH, delivering exceptional working and breaking loads. It is designed for industrial lifting applications and provides superior strength compared to standard 316L stainless steel shackles. Not suitable for mooring.
- Materials: HR 17.4 PH stainless steel grade
- Working load (kg): 2640
- WLL (kg): 1200
- Breaking load (kg): 6000
- Weight (g): 164

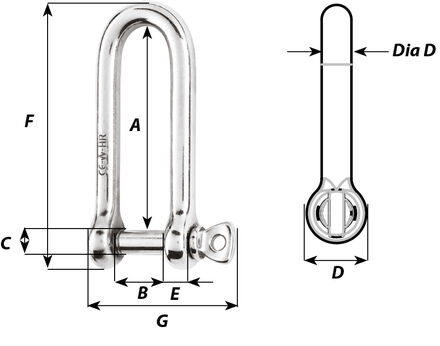

- A (mm): 78
- B (mm): 20
- C (mm): 10
- D (mm): 20
- D diameter (mm): 10
- E (mm): 9
- F (mm): 80
- G (mm): 58
- Item number: WR11215
-
