The Wichard 11209 20 mm D-Shackle forged from HR 17.4 PH stainless steel handles extreme industrial loads, featuring a working load of 8800 kg, WLL of 5600 kg, and breaking load of 28000 kg. It weighs 860 g, is CE marked, and intended solely for high-load lifting and attachment, not mooring.
- Description
- Ask a Question
-

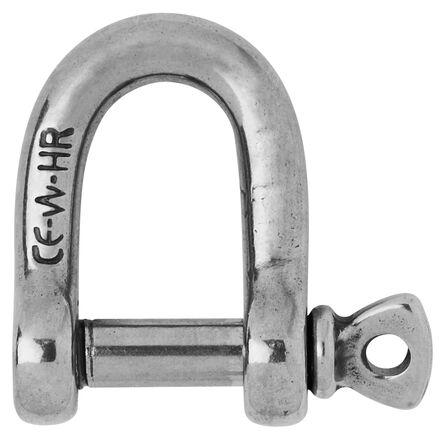

Wichard 11209 - D-Shackle HR Stainless Steel 20 mm
This 20 mm D-shackle forged in HR stainless steel grade 17,4 PH is built to handle extreme loads, providing maximum performance and safety in industrial lifting and attachment applications.
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Applications requesting high loads
- Standard applications of shackle
- Attachment applications: blocks, head …
- Do not use for mooring applications
- Materials: HR 17.4 PH stainless steel grade
- Working load: 8800 kg
- WLL: 5600 kg
- Breaking load: 28000 kg
- Weight: 860 g

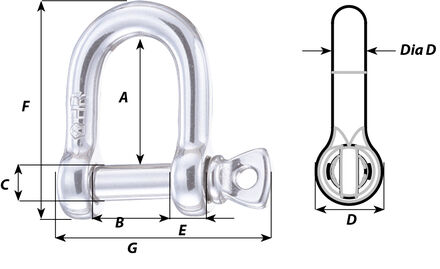

- A: 70 mm
- B: 40 mm
- C: 20 mm
- D: 40 mm
- D diameter: 20 mm
- E: 20 mm
- F: 120 mm
- G: 108 mm
- Item number: WR11209
-
