ID
1304334
$ 27.13
1-2 weeks delivery time
-
+
The Wichard 11203 6 mm D-Shackle is forged from HR 17.4 PH stainless steel, providing exceptional strength and reliability for industrial lifting and attachment. It supports a working load of 1040 kg, a WLL of 460 kg, and a breaking load of 2300 kg, weighing 24 g and CE marked for high-load applications, but not for mooring.
- Description
- Ask a Question
-

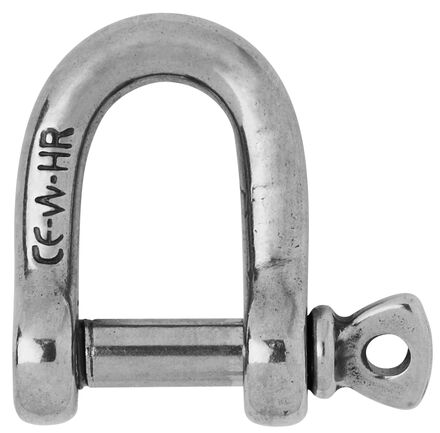

Wichard 11203 - D-Shackle HR Stainless Steel 6 mm
Forged in HR stainless steel grade 17,4 PH, this 6 mm D-shackle provides outstanding strength and reliability for industrial lifting and attachment operations.
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Applications requesting high loads
- Standard applications of shackle
- Attachment applications: blocks, head …
- Do not use for mooring applications
- Materials: HR 17.4 PH stainless steel grade
- Working load: 1040 kg
- WLL: 460 kg
- Breaking load: 2300 kg
- Weight: 24 g

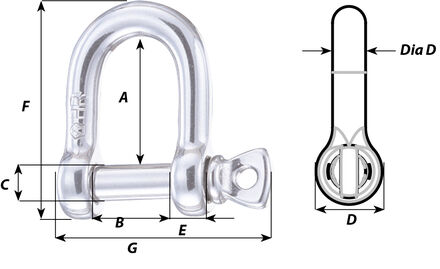

- A: 20 mm
- B: 14 mm
- C: 6 mm
- D: 16 mm
- D diameter: 6 mm
- E: 7 mm
- F: 36 mm
- G: 35 mm
- Item number: WR11203
-
