ID
1304342
$ 181.27
1-2 weeks delivery time
-
+
The Wichard 11240 14 mm Bow Shackle is forged from HR 17-4 PH stainless steel for superior strength, ideal when multiple attachments are needed. It supports a working load of 5120 kg, WLL of 2400 kg, and breaking load of 12000 kg, weighs 364 g, CE marked, and is for industrial lifting only.
- Description
- Ask a Question
-

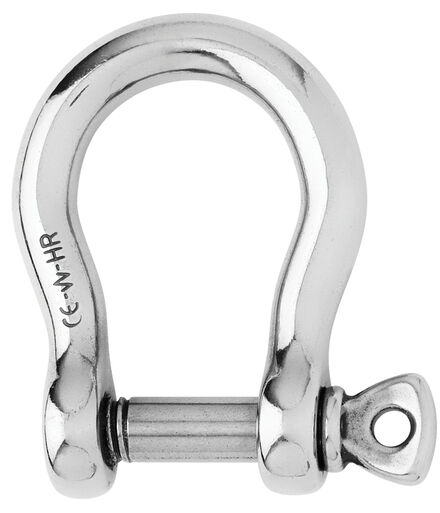

Wichard 11240 - Bow Shackle HR Stainless Steel 14 mm
This bow shackle is forged from HR stainless steel grade 17-4 PH for superior working and breaking loads. Ideal when extra space is required to attach multiple lines or cables. Only intended for industrial lifting applications. CE marked and comes with a batch number. Not for mooring.
- Materials: HR 17.4 PH stainless steel grade
- Working load (kg): 5120
- WLL (kg): 2400
- Breaking load (kg): 12000
- Weight (g): 364

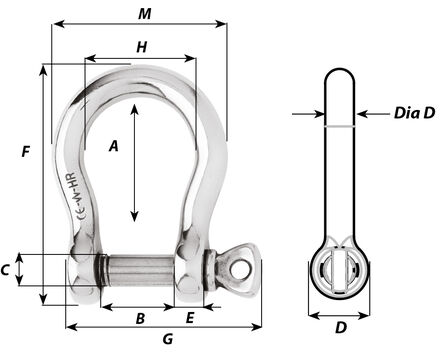

- A (mm): 63
- B (mm): 28
- C (mm): 14
- D (mm): 28
- D diameter (mm): 14
- E (mm): 13
- H (mm): 44
- M (mm): 72
- Item number: WR11240
-
