ID
1304335
$ 43.29
1-2 weeks delivery time
-
+
The Wichard 11204 8 mm D-Shackle is a forged HR 17.4 PH stainless steel shackle offering high performance for industrial lifting, with a working load of 1760 kg, WLL of 820 kg, and breaking load of 4100 kg. It weighs 52 g, is CE marked, and is designed for demanding high-load applications, excluding mooring.
- Description
- Ask a Question
-

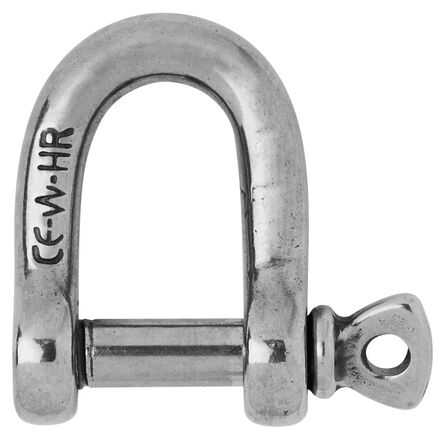

Wichard 11204 - D-Shackle HR Stainless Steel 8 mm
This 8 mm forged D-shackle in HR stainless steel grade 17,4 PH delivers high performance for industrial lifting and attachment tasks.
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Applications requesting high loads
- Standard applications of shackle
- Attachment applications: blocks, head …
- Do not use for mooring applications
- Materials: HR 17.4 PH stainless steel grade
- Working load: 1760 kg
- WLL: 820 kg
- Breaking load: 4100 kg
- Weight: 52 g

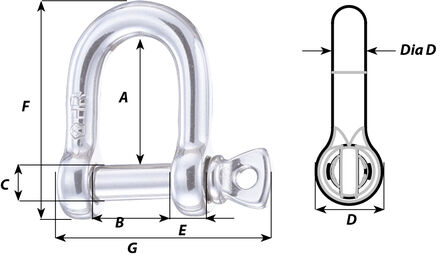

- A: 26 mm
- B: 18 mm
- C: 8 mm
- D: 16 mm
- D diameter: 8 mm
- E: 7 mm
- F: 48 mm
- G: 46 mm
- Item number: WR11204
-
