ID
1304343
$ 53.39
1-2 weeks delivery time
-
+
The Wichard 11244 8 mm Bow Shackle, made from HR 17-4 PH stainless steel, provides strength for high-load applications with limited space for attachments. It supports a working load of 1760 kg, WLL of 820 kg, and breaking load of 4100 kg, weighs 68 g, CE marked, and is intended solely for industrial lifting.
- Description
- Ask a Question
-
Wichard 11244 - Bow Shackle HR Stainless Steel 8 mm

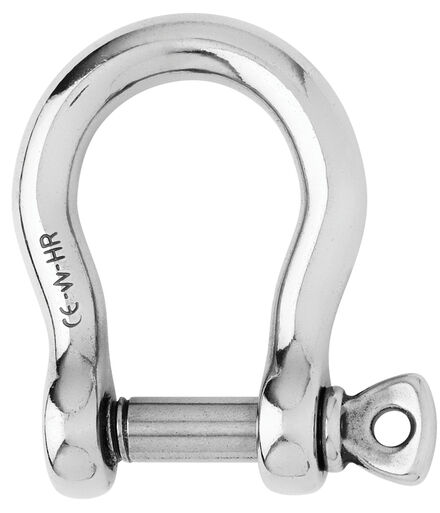

Constructed from HR stainless steel grade 17-4 PH, this bow shackle provides excellent strength for high-load applications. Its design allows multiple lines or cables to be attached when space is limited. For industrial lifting use only. CE marked. Avoid mooring use.
- Materials: HR 17.4 PH stainless steel grade
- Working load (kg): 1760
- WLL (kg): 820
- Breaking load (kg): 4100
- Weight (g): 68

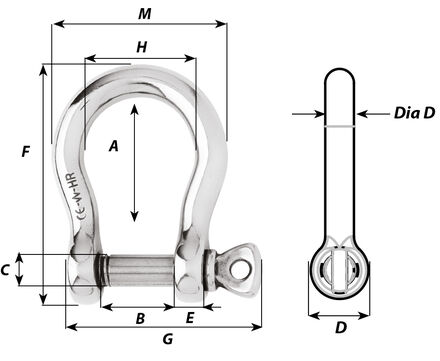

- A (mm): 37
- B (mm): 16
- C (mm): 8
- D (mm): 16
- D diameter (mm): 8
- E (mm): 7
- F (mm): 57
- G (mm): 46
- H (mm): 26
- M (mm): 42
- Item number: WR11244
-
