The Wichard 11206 12 mm D-Shackle in HR 17.4 PH stainless steel is suited for very high load industrial use, offering a working load of 3600 kg, WLL of 2000 kg, and breaking load of 10000 kg. It weighs 192 g and is CE marked, designed for reliable high-load applications while excluding mooring.
- Description
- Ask a Question
-

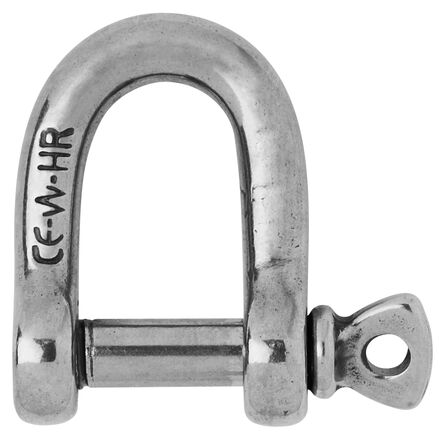

Wichard 11206 - D-Shackle HR Stainless Steel 12 mm
This 12 mm D-shackle forged in HR stainless steel grade 17,4 PH is suited for very high load applications, ensuring strength and safety for industrial use.
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Applications requesting high loads
- Standard applications of shackle
- Attachment applications: blocks, head …
- Do not use for mooring applications
- Materials: HR 17.4 PH stainless steel grade
- Working load: 3600 kg
- WLL: 2000 kg
- Breaking load: 10000 kg
- Weight: 192 g

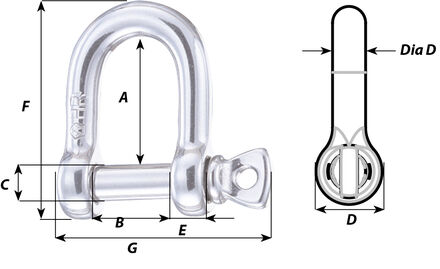

- A: 42 mm
- B: 27 mm
- C: 12 mm
- D: 24 mm
- D diameter: 12 mm
- E: 13 mm
- F: 72 mm
- G: 68 mm
- Item number: WR11206
-
