ID
1304339
$ 191.66
1-2 weeks delivery time
-
+
The Wichard 11208 16 mm D-Shackle in HR 17.4 PH stainless steel offers superior strength for extremely high industrial loads, with a working load of 6800 kg, WLL of 3800 kg, and breaking load of 19000 kg. It weighs 464 g and is CE marked, designed exclusively for demanding lifting applications.
- Description
- Ask a Question
-

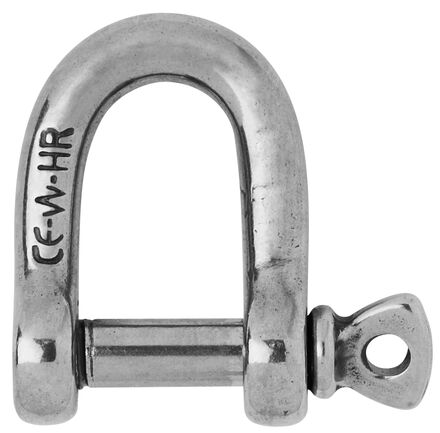

Wichard 11208 - D-Shackle HR Stainless Steel 16 mm
Forged in HR stainless steel grade 17,4 PH, this 16 mm D-shackle ensures superior strength and is ideal for extremely high load industrial lifting and attachment tasks.
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Applications requesting high loads
- Standard applications of shackle
- Attachment applications: blocks, head …
- Do not use for mooring applications
- Materials: HR 17.4 PH stainless steel grade
- Working load: 6800 kg
- WLL: 3800 kg
- Breaking load: 19000 kg
- Weight: 464 g

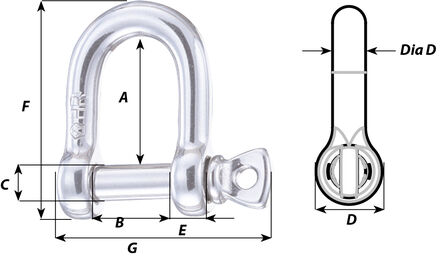

- A: 56 mm
- B: 32 mm
- C: 16 mm
- D: 32 mm
- D diameter: 16 mm
- E: 16 mm
- F: 96 mm
- G: 87 mm
- Item number: WR11208
-
