ID
1304338
$ 158.17
1-2 weeks delivery time
-
+
The Wichard 11207 14 mm D-Shackle is forged from HR 17.4 PH stainless steel to provide maximum strength, supporting a working load of 5120 kg, WLL of 2400 kg, and breaking load of 12000 kg. Weighing 304 g and CE marked, it is intended for heavy industrial lifting and attachment, not for mooring.
- Description
- Ask a Question
-

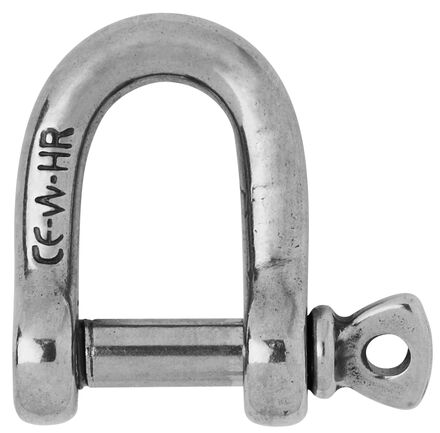

Wichard 11207 - D-Shackle HR Stainless Steel 14 mm
The 14 mm D-shackle in HR stainless steel grade 17,4 PH provides maximum resistance for heavy industrial lifting and attachment operations.
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Applications requesting high loads
- Standard applications of shackle
- Attachment applications: blocks, head …
- Do not use for mooring applications
- Materials: HR 17.4 PH stainless steel grade
- Working load: 5120 kg
- WLL: 2400 kg
- Breaking load: 12000 kg
- Weight: 304 g

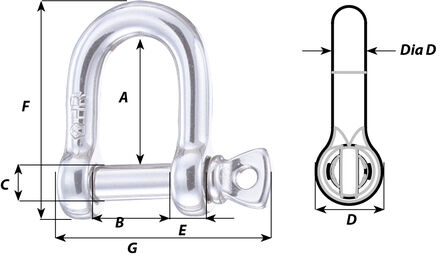

- A: 49 mm
- B: 28 mm
- C: 14 mm
- D: 28 mm
- D diameter: 14 mm
- E: 14 mm
- F: 84 mm
- G: 78 mm
- Item number: WR11207
-
