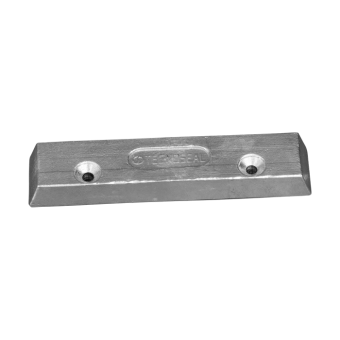

Tecnoseal Saipem Trim Tab Zinc Anode 175x39x19 mm – 2 Holes

Name: Tecnoseal Saipem Trim Tab Zinc Anode 175x39x19 mm – 2 Holes
SKU: Tecnoseal 00206
Price: 53.279045733567 USD
Availability: InStock

ID 1406169

$ 53.28

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 00206 is a zinc sacrificial rectangular plate anode designed for Saipem marine trim tabs (flaps). The plate measures 175 mm (6.89 in) in length, 39 mm (1.54 in) in width and 19 mm (0.75 in) in height. It features two recessed mounting holes spaced 100 mm (3.94 in) centre to centre, with a 7 mm (0.28 in) fastening hole diameter and a 15 mm (0.59 in) recess diameter. Weighing 0.82 kg (1.81 lbs), this anode provides a replaceable zinc element for galvanic corrosion protection of compatible Saipem flap installations.

Description
Ask a Question

Tecnoseal 00206 Saipem Trim Tab Zinc Anode 175x39x19 mm – 2 Holes

The Tecnoseal 00206 is a rectangular zinc sacrificial plate anode designed for Saipem marine trim tabs (flaps). It provides a replaceable corrosion protection element for compatible metallic components in marine applications.

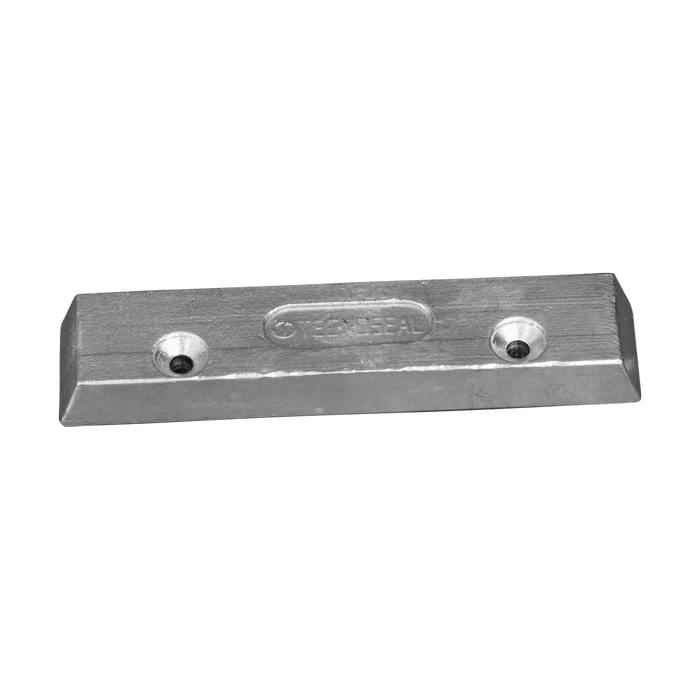

The plate measures 175 mm (6.89 in) in length, 39 mm (1.54 in) in width and 19 mm (0.75 in) in height. Its rectangular profile features bevelled edges and two recessed mounting holes arranged along the longitudinal axis.

The mounting holes are spaced 100 mm (3.94 in) centre to centre. The manufacturer specifies a 7 mm (0.28 in) fastening hole diameter and a 15 mm (0.59 in) recess diameter.

Weighing 0.82 kg (1.81 lbs), the Tecnoseal 00206 is intended as a replacement zinc sacrificial anode for compatible Saipem equipment.

Key Features

Manufacturer: Tecnoseal
Product Code: 00206
Product Type: Rectangular sacrificial plate anode
Material: Zinc
Application: Saipem trim tabs / flaps
Shape: Rectangular plate with bevelled edges
Length (l): 175 mm
Width (a): 39 mm
Height (h): 19 mm
Mounting Holes: 2
Hole Spacing (i): 100 mm
Fastening Hole Diameter (Ø): 7 mm
Recess Diameter (Ø1): 15 mm
Weight: 0.82 kg / 820 g
EAN: 8033837060307

Technical Specifications

Parameter	Metric	Imperial
Length (l)	175 mm	6.89 in
Width (a)	39 mm	1.54 in
Height (h)	19 mm	0.75 in
Mounting Hole Spacing (i)	100 mm	3.94 in
Fastening Hole Diameter (Ø)	7 mm	0.28 in
Recess Diameter (Ø1)	15 mm	0.59 in
Weight	0.82 kg	1.81 lbs
Material	Zinc	–

Saipem Trim Tab Application

The Tecnoseal 00206 is intended for compatible Saipem trim tab installations requiring a rectangular zinc sacrificial anode with the specified mounting dimensions.

The zinc material helps reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.

Mounting Configuration

The plate features two recessed mounting holes with a centre-to-centre spacing of 100 mm. The fastening hole diameter is 7 mm, while the recess diameter is 15 mm.

Before ordering, compare the anode dimensions, hole spacing and recessed mounting arrangement with the existing plate.

Inspection and Replacement

Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.

Installation should follow the applicable equipment maintenance instructions and maintain electrical contact with the protected metallic component.

Supply: One Tecnoseal 00206 zinc sacrificial plate anode.
