Tecnoseal Riva Thalassa Rudder Zinc Anode 200x44x40 mm

Name: Tecnoseal Riva Thalassa Rudder Zinc Anode 200x44x40 mm
SKU: Tecnoseal 00207
Price: 146.27768854357 USD
Availability: InStock

ID 1406170

$ 146.28

1-2 weeks delivery time

- +

Add to cart

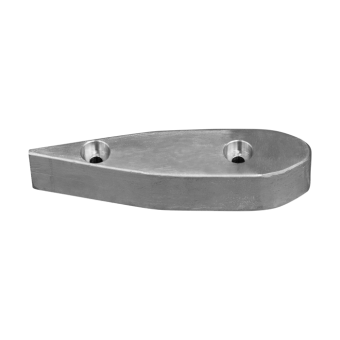

The Tecnoseal 00207 is a zinc sacrificial streamlined plate anode designed for Riva Thalassa rudder applications. Its elongated body measures 200 mm (7.87 in) in length, 44 mm (1.73 in) in width and 40 mm (1.57 in) in height. The anode features two recessed mounting holes spaced 100 mm (3.94 in) centre to centre, with a 9 mm (0.35 in) fastening hole diameter and a 20 mm (0.79 in) recess diameter. Weighing 1.74 kg (3.84 lbs), it provides a replaceable zinc element for galvanic corrosion protection of compatible marine rudder components.

Description
Ask a Question

Tecnoseal 00207 Riva Thalassa Rudder Zinc Anode 200x44x40 mm

The Tecnoseal 00207 is a zinc sacrificial plate anode designed for Riva Thalassa rudder applications. Its streamlined profile provides a replaceable zinc component intended to help protect compatible metallic rudder equipment against galvanic corrosion.

The anode features an elongated, streamlined body measuring 200 mm (7.87 in) in length, 44 mm (1.73 in) in width and 40 mm (1.57 in) in height. Its mounting arrangement incorporates two recessed holes positioned along the longitudinal axis.

The mounting holes have a centre-to-centre spacing of 100 mm (3.94 in), with a specified fastening hole diameter of 9 mm (0.35 in) and a recess diameter of 20 mm (0.79 in).

Weighing 1.74 kg (3.84 lbs), the Tecnoseal 00207 is intended as a replacement sacrificial anode for compatible Riva Thalassa marine installations.

Key Features

Manufacturer: Tecnoseal
Product Code: 00207
Product Type: Streamlined sacrificial plate anode
Material: Zinc
Application: Riva Thalassa rudder
Shape: Elongated streamlined plate
Length (l): 200 mm
Width (a): 44 mm
Height (h): 40 mm
Mounting Holes: 2
Hole Spacing (i): 100 mm
Fastening Hole Diameter (Ø): 9 mm
Recess Diameter (Ø1): 20 mm
Weight: 1.74 kg / 1740 g
EAN: 8033837060314

Technical Specifications

Parameter	Metric	Imperial
Length (l)	200 mm	7.87 in
Width (a)	44 mm	1.73 in
Height (h)	40 mm	1.57 in
Hole Spacing (i)	100 mm	3.94 in
Fastening Hole Diameter (Ø)	9 mm	0.35 in
Recess Diameter (Ø1)	20 mm	0.79 in
Weight	1.74 kg	3.84 lbs
Material	Zinc	–

Riva Thalassa Rudder Application

The Tecnoseal 00207 is specified for Riva Thalassa rudder applications requiring a streamlined zinc sacrificial anode with the stated dimensions and mounting configuration.

The zinc material provides sacrificial galvanic corrosion protection for associated metallic rudder components when installed with the required electrical contact.

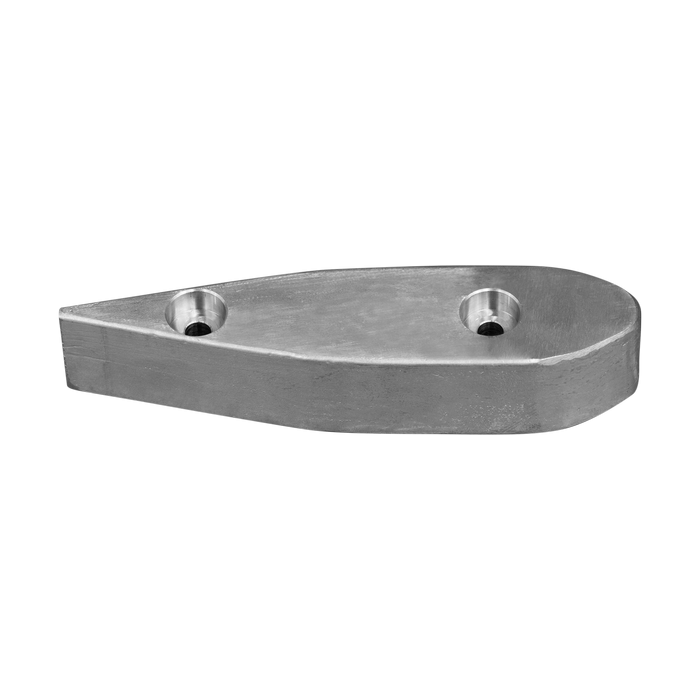

Streamlined Design and Mounting

The anode features an elongated streamlined profile with two recessed mounting holes arranged along its longitudinal axis. The mounting hole spacing is 100 mm, with specified diameters of 9 mm and 20 mm for the fastening hole and recess respectively.

Before ordering, compare the overall dimensions, mounting hole spacing and recessed fastening arrangement with the existing anode.

Inspection and Replacement

Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.

Installation should follow the applicable marine equipment maintenance instructions and maintain the required electrical contact between the anode and the protected metallic component.

Supply: One Tecnoseal 00207 zinc sacrificial plate anode.
