The Tecnoseal 00205 is a rectangular zinc sacrificial plate anode designed for Saipem trim tab (flap) applications. It measures 118 mm (4.65 in) in length, 34 mm (1.34 in) in width and 20 mm (0.79 in) in height, with two recessed mounting holes spaced 60 mm (2.36 in) centre to centre. The fastening hole diameter is 6.5 mm (0.26 in), with a 15 mm (0.59 in) recess diameter. Weighing 0.46 kg (1.01 lbs), the anode provides sacrificial corrosion protection for compatible marine flap installations.
- Description
- Ask a Question
-
Tecnoseal 00205 Saipem Trim Tab Zinc Anode 118x34x20 mm – 2 Holes
The Tecnoseal 00205 is a rectangular zinc sacrificial plate anode designed for Saipem trim tabs (flaps). It provides a replaceable zinc corrosion protection element for compatible marine flap installations.

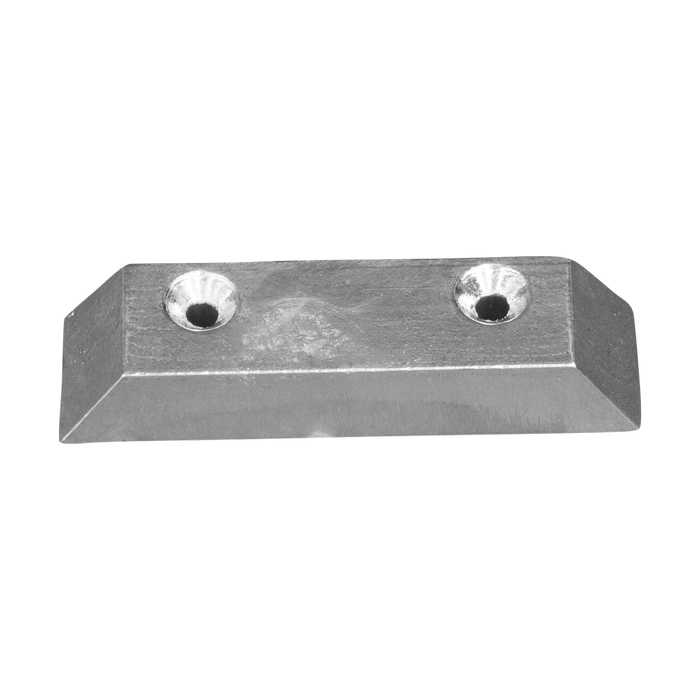

The anode features an elongated rectangular body with bevelled edges, measuring 118 mm (4.65 in) in length, 34 mm (1.34 in) in width and 20 mm (0.79 in) in height.
Two recessed mounting holes are arranged along the plate's longitudinal axis. The centre-to-centre spacing is 60 mm (2.36 in), with a fastening hole diameter of 6.5 mm (0.26 in) and a recess diameter of 15 mm (0.59 in).
Weighing 0.46 kg (1.01 lbs), the Tecnoseal 00205 is intended as a replacement sacrificial zinc anode for compatible Saipem equipment.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00205
- Product Type: Rectangular sacrificial plate anode
- Material: Zinc
- Application: Saipem trim tabs / flaps
- Shape: Rectangular plate with bevelled edges
- Length (l): 118 mm
- Width (a): 34 mm
- Height (h): 20 mm
- Mounting Holes: 2
- Hole Spacing (i): 60 mm
- Fastening Hole Diameter (Ø): 6.5 mm
- Recess Diameter (Ø1): 15 mm
- Weight: 0.46 kg / 460 g
- EAN: 8033837060291
Technical Specifications
Parameter Metric Imperial Length (l) 118 mm 4.65 in Width (a) 34 mm 1.34 in Height (h) 20 mm 0.79 in Mounting Hole Spacing (i) 60 mm 2.36 in Fastening Hole Diameter (Ø) 6.5 mm 0.26 in Recess Diameter (Ø1) 15 mm 0.59 in Weight 0.46 kg 1.01 lbs Material Zinc –
Saipem Trim Tab Application
The Tecnoseal 00205 is specified for Saipem trim tab and flap applications requiring a rectangular zinc anode with the stated mounting dimensions.
The zinc material provides sacrificial galvanic corrosion protection for associated metallic components when installed with the required electrical contact.
Mounting Configuration
The plate has two recessed mounting holes spaced 60 mm apart, measured between their centres. Each mounting position incorporates the manufacturer's specified Ø6.5 mm and Ø15 mm dimensions.
Before ordering, compare the plate's overall dimensions, mounting hole spacing and recessed fastening arrangement with the existing anode.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.
Installation should follow the applicable equipment maintenance instructions and maintain electrical contact between the zinc anode and the protected metal component.
Supply: One Tecnoseal 00205 zinc sacrificial plate anode.
-
