The Tecnoseal 00211 is a rectangular zinc sacrificial plate anode designed for marine trim tab (flap) applications. It measures 100 mm (3.94 in) in length, 45 mm (1.77 in) in width and 9 mm (0.35 in) in height. The plate features two mounting holes with a diameter of 7 mm (0.28 in), spaced 50 mm (1.97 in) centre to centre. Weighing 0.28 kg (0.62 lbs), this zinc anode provides a replaceable sacrificial element to help protect compatible marine metallic components against galvanic corrosion.
- Description
- Ask a Question
-

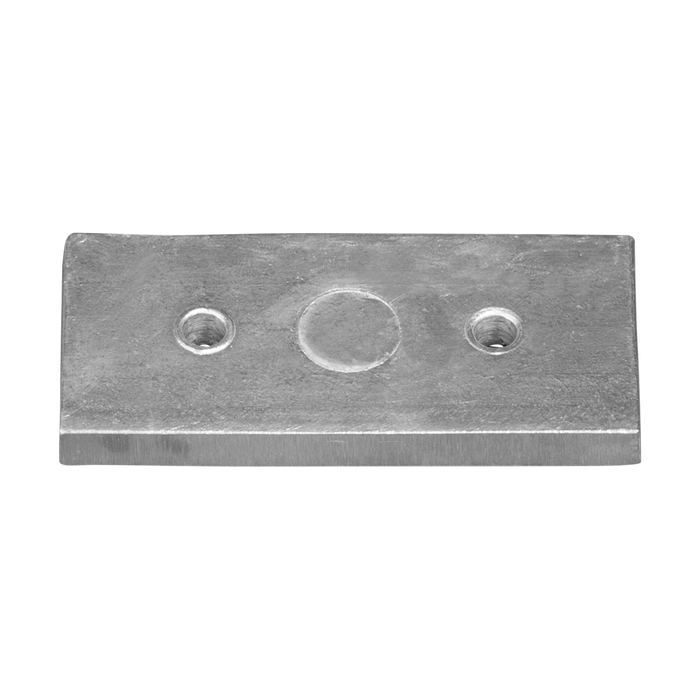

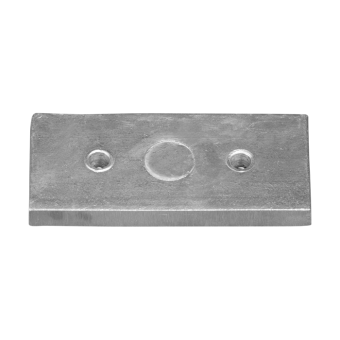

Tecnoseal 00211 Rectangular Trim Tab Zinc Anode 100x45x9 mm
The Tecnoseal 00211 is a rectangular zinc sacrificial plate anode designed for marine trim tab (flap) applications. It provides a replaceable zinc component intended to help protect compatible metallic parts against galvanic corrosion.
The plate measures 100 mm (3.94 in) in length, 45 mm (1.77 in) in width and 9 mm (0.35 in) in height. Its rectangular body incorporates two mounting holes arranged along the longitudinal axis, with a centre-to-centre spacing of 50 mm (1.97 in).
Each mounting hole has a specified diameter of 7 mm (0.28 in). The Tecnoseal 00211 weighs 0.28 kg (0.62 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00211
- Product Type: Rectangular sacrificial plate anode
- Material: Zinc
- Application: Marine trim tabs / flaps
- Shape: Rectangular plate
- Length (l): 100 mm
- Width (a): 45 mm
- Height (h): 9 mm
- Mounting Holes: 2
- Hole Spacing (i): 50 mm
- Hole Diameter (Ø): 7 mm
- Weight: 0.28 kg / 280 g
- EAN: 8033837060345
Technical Specifications
Parameter Metric Imperial Length (l) 100 mm 3.94 in Width (a) 45 mm 1.77 in Height (h) 9 mm 0.35 in Mounting Hole Spacing (i) 50 mm 1.97 in Mounting Hole Diameter (Ø) 7 mm 0.28 in Weight 0.28 kg 0.62 lbs Material Zinc – EAN 8033837060345 –
Rectangular Plate Design
The Tecnoseal 00211 features a rectangular plate profile with two mounting holes positioned along the centreline. The holes are spaced 50 mm apart, measured between their centres, and have a diameter of 7 mm.
The compact 100 × 45 × 9 mm dimensions make this anode suitable for compatible marine installations requiring the specified rectangular plate configuration.
Marine Corrosion Protection
The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.
Selection of the correct anode should take into account the operating water conditions, existing corrosion protection system and equipment manufacturer's recommendations.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.
Before ordering, compare the 100 × 45 × 9 mm dimensions, 50 mm mounting hole spacing and 7 mm hole diameter with the existing anode.
Supply: One Tecnoseal 00211 zinc sacrificial plate anode.
-
