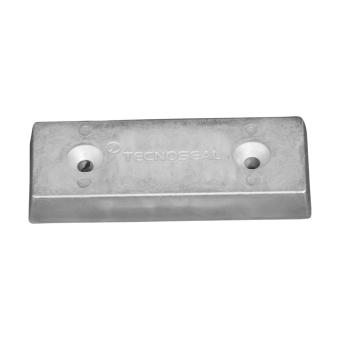

Tecnoseal Rectangular Trim Tab Anode 130x50x17 mm – Zinc & Magnesium

Name: Tecnoseal Rectangular Trim Tab Anode 130x50x17 mm – Zinc & Magnesium
SKU: Tecnoseal 00213

ID 1406178

$ 37.33

1-2 weeks delivery time

Item:

Zinc
Magnesium

Tecnoseal 00213 rectangular sacrificial plate anodes are designed for marine trim tab (flap) corrosion protection and are available in zinc and magnesium. Both versions measure 130 mm (5.12 in) in length, 50 mm (1.97 in) in width and 17 mm (0.67 in) in height. They feature two 7 mm (0.28 in) mounting holes spaced 77 mm (3.03 in) centre to centre. The zinc 00213 weighs 0.69 kg (690 g), while the magnesium 00213MG weighs 0.17 kg (170 g). Both versions share identical dimensions and mounting configurations, allowing selection according to the required anode material.

Description
Ask a Question

Tecnoseal 00213 Rectangular Trim Tab Anode 130x50x17 mm – Zinc & Magnesium

The Tecnoseal 00213 series consists of rectangular sacrificial plate anodes available in zinc and magnesium. These anodes are intended for marine trim tab (flap) applications, providing a replaceable sacrificial element to help protect compatible metallic components against galvanic corrosion.

Both variants feature identical rectangular bodies measuring 130 mm (5.12 in) in length, 50 mm (1.97 in) in width and 17 mm (0.67 in) in height. Each plate incorporates two recessed mounting holes with a diameter of 7 mm (0.28 in) and a centre-to-centre spacing of 77 mm (3.03 in).

The zinc 00213 version weighs 0.69 kg (1.52 lbs), while the magnesium 00213MG weighs 0.17 kg (0.37 lbs). Both versions use the same mounting dimensions.

Key Features

Manufacturer: Tecnoseal
Product Series: 00213
Product Type: Rectangular sacrificial plate anode
Available Materials: Zinc and Magnesium
Application: Marine trim tabs / flaps
Shape: Rectangular plate
Length (l): 130 mm
Width (a): 50 mm
Height (h): 17 mm
Mounting Holes: 2
Hole Spacing (i): 77 mm
Hole Diameter (Ø): 7 mm
Weight: 0.69 kg (Zinc) / 0.17 kg (Magnesium)

Technical Specifications

Parameter	00213	00213MG
Material	Zinc	Magnesium
Length (l)	130 mm	130 mm
Width (a)	50 mm	50 mm
Height (h)	17 mm	17 mm
Hole Spacing (i)	77 mm	77 mm
Hole Diameter (Ø)	7 mm	7 mm
Weight	0.69 kg	0.17 kg
EAN	8033837060369	8058774835689

Available Models

Tecnoseal 00213 – Zinc: Rectangular plate anode, 130 × 50 × 17 mm, weight 0.69 kg (1.52 lbs), EAN 8033837060369.
Tecnoseal 00213MG – Magnesium: Rectangular plate anode, 130 × 50 × 17 mm, weight 0.17 kg (0.37 lbs), EAN 8058774835689.

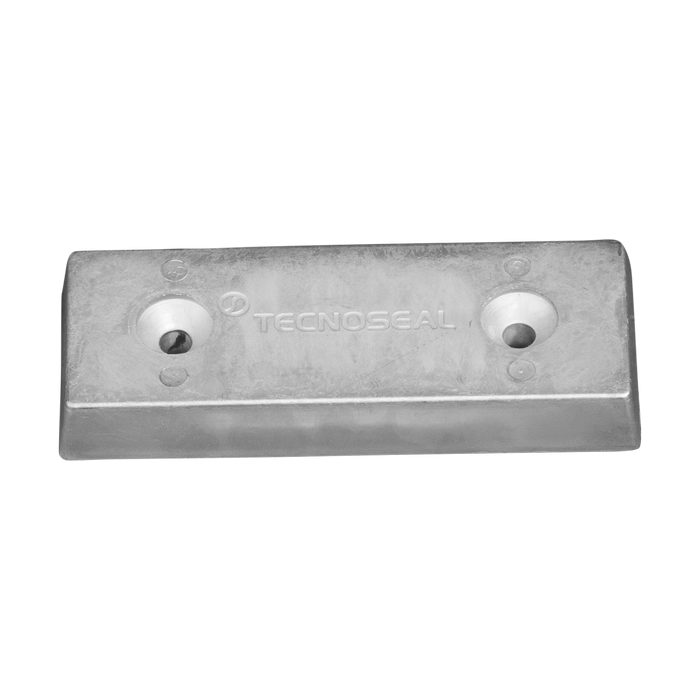

Rectangular Plate Design and Mounting

The TEC-00213 series features a rectangular body with two recessed mounting holes positioned along its longitudinal axis. The mounting holes measure 7 mm in diameter and are spaced 77 mm apart, measured between their centres.

Both material versions have identical overall dimensions and mounting configurations, allowing replacement with the appropriate sacrificial anode material while retaining the specified geometry.

Choosing the Correct Anode Material

The series is available in two sacrificial anode materials:

Zinc: Zinc sacrificial anode version for compatible marine cathodic protection systems.
Magnesium: Magnesium sacrificial anode version for installations requiring magnesium anode material.

The appropriate material should be selected according to the vessel's operating water conditions, existing corrosion protection system and equipment manufacturer's recommendations.

Inspection and Replacement

Sacrificial anodes gradually lose material during service. Periodic inspection is recommended to determine when replacement is required.

Before ordering, verify the 130 × 50 × 17 mm body dimensions, 77 mm mounting hole spacing and 7 mm hole diameter against the existing installation.

Supply: One Tecnoseal 00213 series rectangular sacrificial plate anode in the selected material.
