The Tecnoseal 00204GALE is a zinc sacrificial plate anode designed for Galeon boat trim tabs (flaps). Its streamlined body measures 210 mm (8.27 in) in length, 29 mm (1.14 in) in width and 20 mm (0.79 in) in height. The plate features three mounting holes with adjacent centre-to-centre distances of 70 mm (2.76 in) and 75 mm (2.95 in), and specified hole diameters of 6.5 mm (0.26 in) and 10.5 mm (0.41 in). Weighing 0.50 kg (500 g), this zinc anode provides sacrificial galvanic corrosion protection for compatible Galeon marine installations.
- Description
- Ask a Question
-

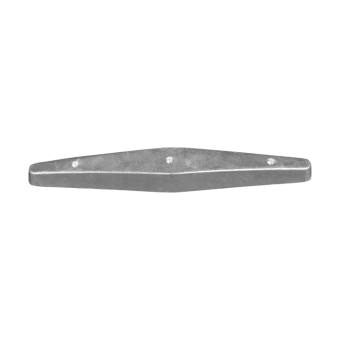

Tecnoseal 00204GALE Galeon Trim Tab Zinc Anode 210x29x20 mm – 3 Holes
The Tecnoseal 00204GALE is a zinc sacrificial plate anode designed for trim tabs (flaps) on Galeon boats. Its streamlined profile provides a replaceable corrosion protection element for compatible marine installations.

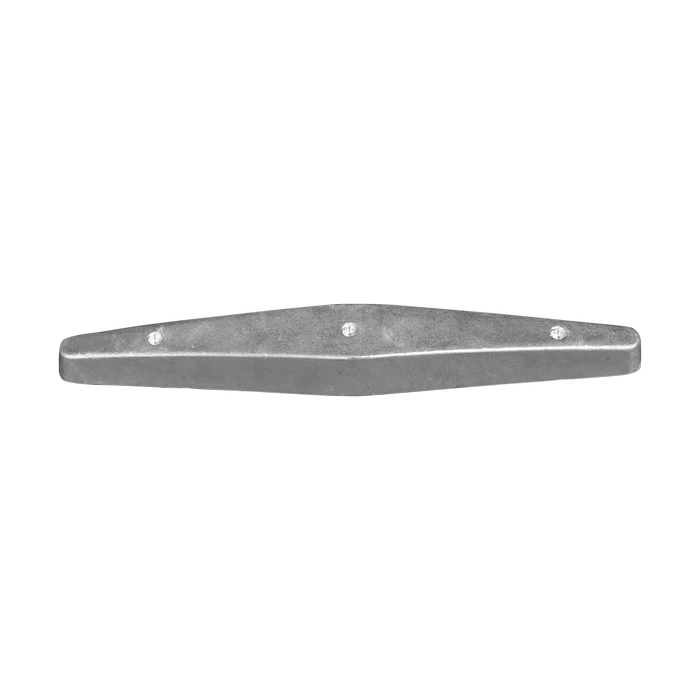

The anode features an elongated body measuring 210 mm (8.27 in) in length, 29 mm (1.14 in) in width and 20 mm (0.79 in) in height. The profile has rounded ends and a wider central section with three recessed mounting holes arranged along its longitudinal axis.
The mounting configuration includes two adjacent centre-to-centre distances of 70 mm (2.76 in) and 75 mm (2.95 in), with specified diameters of 6.5 mm (0.26 in) and 10.5 mm (0.41 in). The zinc anode weighs 0.50 kg (1.10 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00204GALE
- Product Type: Streamlined sacrificial plate anode
- Material: Zinc
- Application: Galeon boat trim tabs / flaps
- Shape: Streamlined elongated plate
- Length (l): 210 mm
- Width (a): 29 mm
- Height (h): 20 mm
- Mounting Holes: 3
- Hole Spacing (i): 70 mm
- Hole Spacing (i1): 75 mm
- Diameter (Ø): 6.5 mm
- Diameter (Ø1): 10.5 mm
- Weight: 0.50 kg / 500 g
- EAN: 8033837067443
Technical Specifications
Parameter Metric Imperial Length (l) 210 mm 8.27 in Width (a) 29 mm 1.14 in Height (h) 20 mm 0.79 in Hole Spacing (i) 70 mm 2.76 in Hole Spacing (i1) 75 mm 2.95 in Hole Diameter (Ø) 6.5 mm 0.26 in Recess Diameter (Ø1) 10.5 mm 0.41 in Weight 0.50 kg 1.10 lbs Material Zinc –
Galeon Trim Tab Application
The Tecnoseal 00204GALE is intended for compatible Galeon boat trim tab installations requiring a streamlined zinc sacrificial plate anode.
The zinc material provides sacrificial galvanic corrosion protection for associated metallic components when installed with the required electrical contact.
Streamlined Profile and Mounting
The anode features a narrow, elongated profile with three mounting holes positioned along its centreline. The manufacturer specifies adjacent mounting distances of 70 mm and 75 mm, together with mounting diameters of 6.5 mm and 10.5 mm.
Before ordering, compare the plate dimensions, hole configuration and mounting distances against the original anode. Compatibility with individual Galeon boat models should be verified against the existing installation.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material while protecting associated metal components against galvanic corrosion. Inspect the anode periodically and replace it when sufficiently consumed.
Installation should follow the relevant equipment maintenance instructions and maintain the required electrical contact between the anode and the protected component.
Supply: One Tecnoseal 00204GALE zinc sacrificial trim tab plate anode.
-
