Tecnoseal Riva Aquariva Trim Tab Zinc Anode 100x28x12 mm

Name: Tecnoseal Riva Aquariva Trim Tab Zinc Anode 100x28x12 mm
SKU: Tecnoseal 00212riva
Price: 44.637854394681 USD
Availability: InStock

ID 1406177

$ 44.64

1-2 weeks delivery time

- +

Add to cart

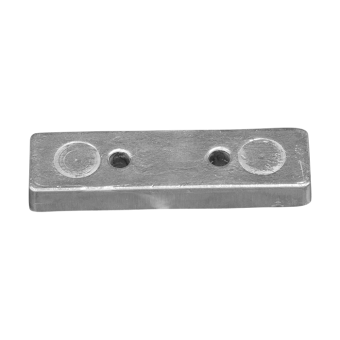

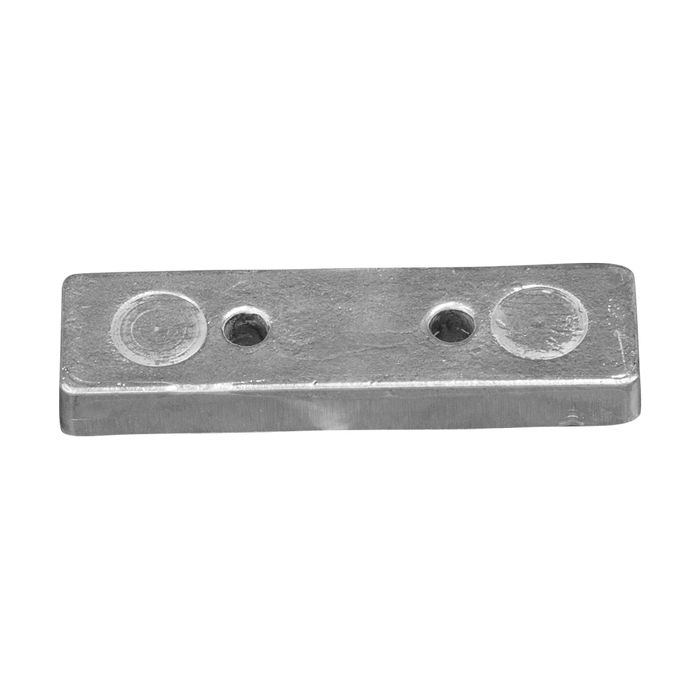

The Tecnoseal 00212RIVA is a rectangular zinc sacrificial plate anode designed for Riva Aquariva trim tab (flap) applications. It measures 100 mm (3.94 in) in length, 28 mm (1.10 in) in width and 12 mm (0.47 in) in height. The plate features two mounting holes with a diameter of 6.5 mm (0.26 in), spaced 35 mm (1.38 in) centre to centre. Weighing 0.22 kg (0.49 lbs), this zinc anode provides a replaceable sacrificial element for galvanic corrosion protection of compatible marine flap components.

Description
Ask a Question

Tecnoseal 00212RIVA Riva Aquariva Trim Tab Zinc Anode 100x28x12 mm

The Tecnoseal 00212RIVA is a rectangular zinc sacrificial plate anode designed for trim tab (flap) applications on Riva Aquariva boats. It provides a replaceable zinc component to help protect compatible metallic parts against galvanic corrosion.

The plate measures 100 mm (3.94 in) in length, 28 mm (1.10 in) in width and 12 mm (0.47 in) in height. Its rectangular body incorporates two mounting holes positioned along the longitudinal axis.

The mounting holes are spaced 35 mm (1.38 in) centre to centre and have a diameter of 6.5 mm (0.26 in). The Tecnoseal 00212RIVA weighs 0.22 kg (0.49 lbs).

Key Features

Manufacturer: Tecnoseal
Product Code: 00212RIVA
Product Type: Rectangular sacrificial plate anode
Material: Zinc
Application: Riva Aquariva trim tabs / flaps
Shape: Rectangular plate
Length (l): 100 mm
Width (a): 28 mm
Height (h): 12 mm
Mounting Holes: 2
Hole Spacing (i): 35 mm
Hole Diameter (Ø): 6.5 mm
Weight: 0.22 kg / 220 g
EAN: 8033837067450

Technical Specifications

Parameter	Metric	Imperial
Length (l)	100 mm	3.94 in
Width (a)	28 mm	1.10 in
Height (h)	12 mm	0.47 in
Mounting Hole Spacing (i)	35 mm	1.38 in
Mounting Hole Diameter (Ø)	6.5 mm	0.26 in
Weight	0.22 kg	0.49 lbs
Material	Zinc	–
EAN	8033837067450	–

Riva Aquariva Trim Tab Application

The Tecnoseal 00212RIVA is specified for Riva Aquariva trim tab applications requiring a rectangular zinc sacrificial anode with the stated dimensions and mounting configuration.

The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when correctly installed with the required electrical contact.

Mounting Configuration

The plate features two mounting holes spaced 35 mm apart, measured between their centres. The hole diameter is 6.5 mm.

Before ordering, compare the 100 × 28 × 12 mm body dimensions and mounting hole positions with the existing component. Compatibility should be verified against the particular Riva Aquariva installation.

Inspection and Replacement

Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.

Installation should follow the applicable marine equipment maintenance instructions and maintain electrical contact with the protected metallic component.

Supply: One Tecnoseal 00212RIVA zinc sacrificial plate anode.
