The Tecnoseal 00209 is a rectangular zinc sacrificial plate anode designed for Boston Whaler boat trim tabs (flaps). Measuring 69 mm (2.72 in) in length, 50 mm (1.97 in) in width and 14 mm (0.55 in) in height, it features two recessed mounting holes spaced 33 mm (1.30 in) centre to centre. The fastening hole diameter is 6.5 mm (0.26 in), with a 13 mm (0.51 in) recess diameter. Weighing 0.28 kg (0.62 lbs), this zinc anode is intended for galvanic corrosion protection of compatible Boston Whaler marine installations.
- Description
- Ask a Question
-

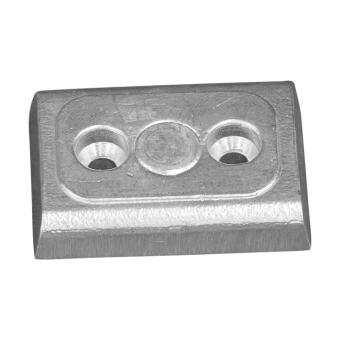

Tecnoseal 00209 Boston Whaler Trim Tab Zinc Anode 69x50x14 mm
The Tecnoseal 00209 is a rectangular zinc sacrificial plate anode designed for Boston Whaler boat trim tabs (flaps). It provides a replaceable zinc component intended to help protect compatible metallic parts against galvanic corrosion in marine environments.

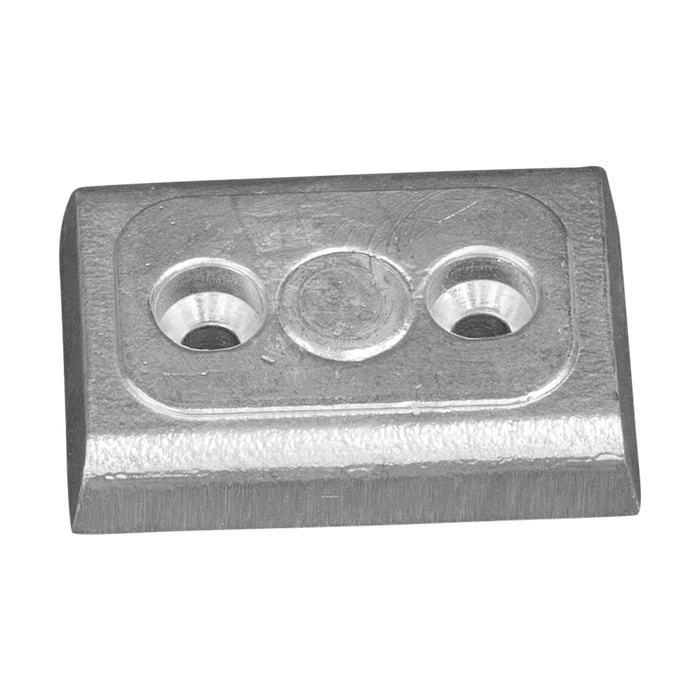

The anode measures 69 mm (2.72 in) in length, 50 mm (1.97 in) in width and 14 mm (0.55 in) in height. Its rectangular body features two recessed mounting holes arranged along the plate's longitudinal axis.
The mounting holes are spaced 33 mm (1.30 in) centre to centre. The manufacturer specifies a fastening hole diameter of 6.5 mm (0.26 in) and a recess diameter of 13 mm (0.51 in).
Weighing 0.28 kg (0.62 lbs), the Tecnoseal 00209 is intended for compatible Boston Whaler trim tab installations.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00209
- Product Type: Rectangular sacrificial plate anode
- Material: Zinc
- Application: Boston Whaler trim tabs / flaps
- Shape: Rectangular plate
- Length (l): 69 mm
- Width (a): 50 mm
- Height (h): 14 mm
- Mounting Holes: 2
- Hole Spacing (i): 33 mm
- Fastening Hole Diameter (Ø): 6.5 mm
- Recess Diameter (Ø1): 13 mm
- Weight: 0.28 kg / 280 g
- EAN: 8033837060321
Technical Specifications
Parameter Metric Imperial Length (l) 69 mm 2.72 in Width (a) 50 mm 1.97 in Height (h) 14 mm 0.55 in Mounting Hole Spacing (i) 33 mm 1.30 in Fastening Hole Diameter (Ø) 6.5 mm 0.26 in Recess Diameter (Ø1) 13 mm 0.51 in Weight 0.28 kg 0.62 lbs Material Zinc –
Boston Whaler Trim Tab Application
The Tecnoseal 00209 is specified for Boston Whaler marine flap applications requiring a rectangular zinc sacrificial anode with the stated dimensions.
The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when correctly installed with the required electrical contact.
Mounting Configuration
The plate features two recessed mounting holes positioned 33 mm apart, measured between their centres. Each mounting position incorporates a 6.5 mm fastening hole and a 13 mm recess diameter.
Before ordering, verify the anode's overall dimensions, mounting hole spacing and recessed fastening configuration against the existing component. Compatibility with a particular Boston Whaler model should be confirmed before replacement.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.
Installation should follow the applicable equipment maintenance instructions and maintain electrical contact between the zinc anode and the protected metallic component.
Supply: One Tecnoseal 00209 zinc sacrificial plate anode.
-
